41 14 020 Replacing Front Left Or Right Wheel Arch

Note the special vehicle identification number procedure when replacing the front right wheel arch (order the new body part with the vehicle identification number, if necessary)!

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Use only an approved SPOT-WELDING APPARATUS  for repairs!

Place vehicle on straightening bench.

Observe procedure for REPAIR STAGE 2 .

Following new body parts are required:

• (1) Wheel arch, front
• (2) Carrier support, wheel arch, front,

Following CONSUMABLES  are required:

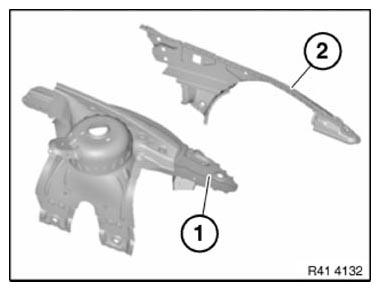

Fig 1: Identifying Wheel Arch (Front) And Carrier Support - Wheel Arch (Front)

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the wheel arch:

Open welded connections in areas (1).

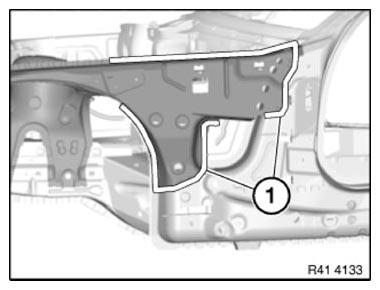

Fig 2: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

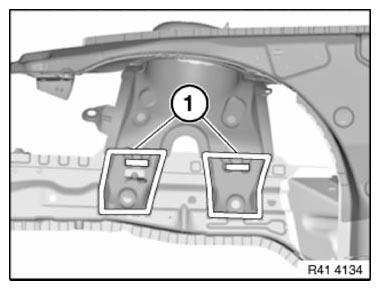

Fig 3: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Open SPOT-WELDED ADHESIVE JOINT  in area (2).

Remove wheel arch with carrier support.

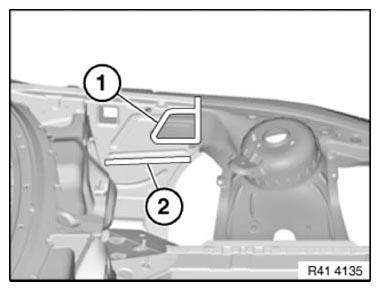

Fig 4: Identifying Weld Joints Areas And Spot-Welded Adhesive Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Adjust new parts to fit with alignment bracket or universal mount and secure.

In areas (1) set thirty two 6.8 mm dia. bore holes for blind rivets N1.

Remove new part and deburr holes.

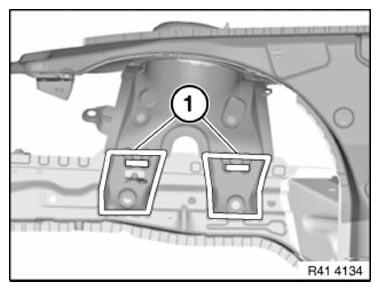

Fig 5: Identifying Blind Rivets Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installing wheel arch and carrier support

Clean all bonding surfaces on vehicle (1) and on new part with cleaning agent.

Apply K1 adhesive to bonding surfaces (1).

Fig 6: Identifying Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Install new parts with alignment bracket or universal mount and rivet with blind rivets N1 (1).

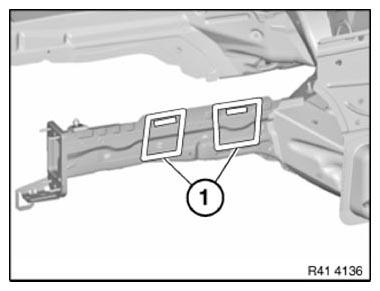

Fig 7: Identifying Blind Rivets (N1) Area

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new parts identically to the series in the other gap areas.
