41 11 733 Replacing Front Luggage Compartment Floor Cross-Member (Luggage Compartment Floor Completely Removed)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Following new body parts are required:

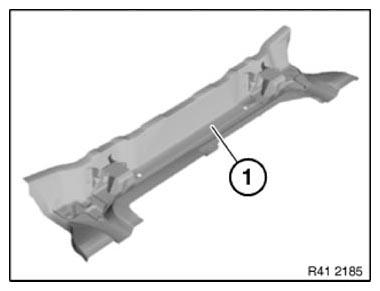

(1) Cross-member, luggage compartment floor, front

Fig 1: Identifying Cross Member, Luggage Compartment Floor, Front

Courtesy of BMW OF NORTH AMERICA, INC.

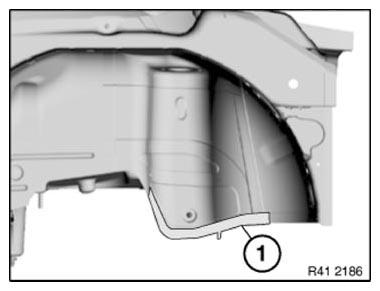

Open weld joints in area (1) on left and right sides of car.

Fig 2: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

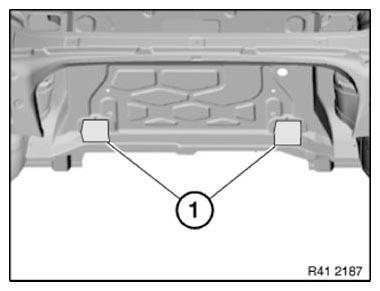

Open weld joints in areas (1).

Fig 3: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

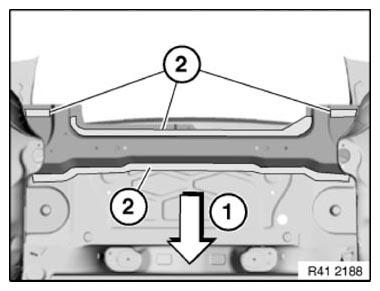

NOTE: View from vehicle floorpan

(1) = direction of travel

Open weld joints in areas (2).

Fig 4: Identifying Travel Direction And Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.
