41 11 141 Replacing Cover For Left Or Right Frame Side Member (Partial Replacement Between A- And B-Pillars)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS for repairs.

Following new body parts are required:

(1) Outer rocker panel

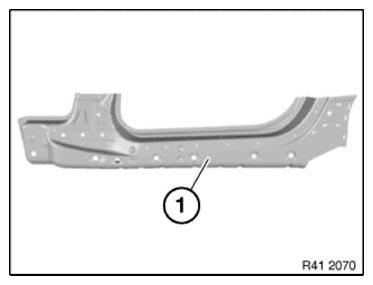

Fig 1: Identifying Outer Rocker Panel

Courtesy of BMW OF NORTH AMERICA, INC.

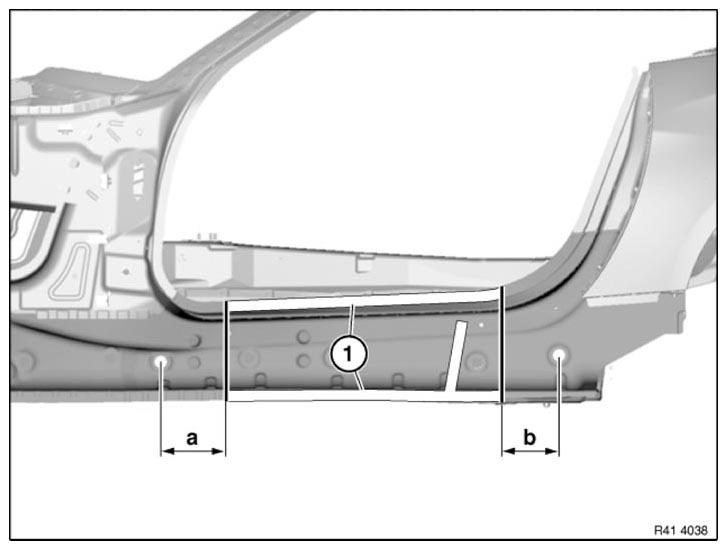

Fig 2: Identifying Severance Cuts Marking And Outer Rocker Panel Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

Distance a = approx. 150 mm behind bore dia. 25 mm.

Distance b = approx. 130 mm before bore dia. 25 mm.

Release weld joints in areas (1) and remove outer rocker panel.

Installation:

Weld in REINFORCING PANELS at all severance cuts.
