41 11 048 Replacing Front Left Engine Support (Without Wheel Arch) (Partial Replacement Before Bulkhead)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Following new body parts are required:

(1) Engine support, front

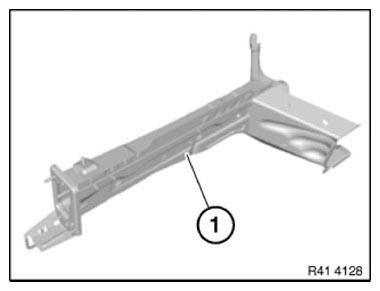

Fig 1: Identifying Engine Support (Front)

G11151584

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of engine support

Open welded connections in area (1).

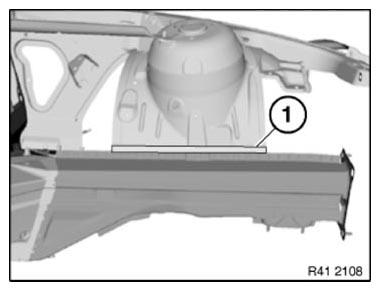

Fig 2: Identifying Weld Joint Area

G11151585

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

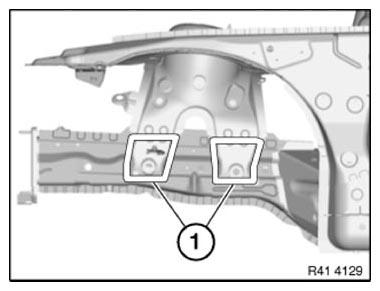

Fig 3: Identifying Weld Joint Area

G11151586

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) and cut.

IMPORTANT: Cut outer metal panel only.

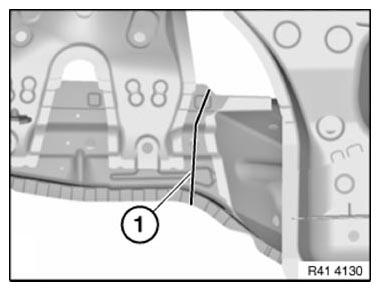

Fig 4: Marking Severance Cut

G11151587

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove engine support.

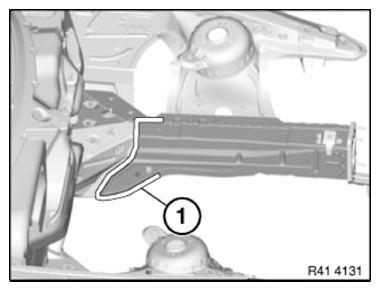

Fig 5: Identifying Weld Joint Area

G11151588

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Prepare REINFORCEMENT PLATE at severance cut.

Adjust new part to fit with set of attachments or universal mount.

Installing engine support

Install new part and reinforcement plate with alignment bracket or universal mount and weld.
