41 11 028 Replacing Left Engine Carrier (Partial Replacement Before Front Axle)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Following new body parts are required:

(1) Partial section, engine carrier

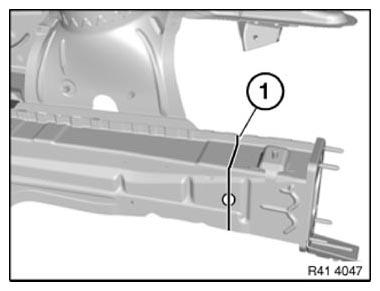

Fig 1: Identifying Engine Carrier Partial Section

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with measurement a and cut.

IMPORTANT: Cut outer metal sheet only.

Measurement a = approx. 15 mm in front of bore dia. 20 mm.

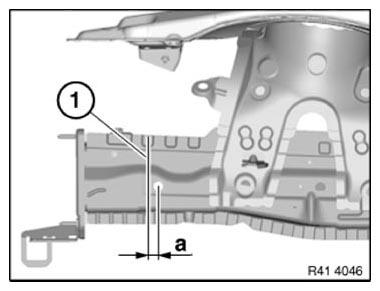

Fig 2: Marking Severance Cut In Accordance With Measurement

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) through 15 mm dia. bore and cut.

Preparation of new part:

Mark severance cuts in accordance with vehicle and cut.

Installation:

Adjust new part to fit with straightening attachment and universal mount.

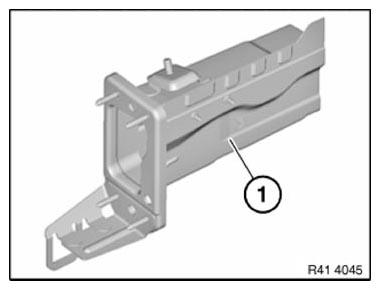

Fig 3: Marking Severance Cut In Accordance With Vehicle

Courtesy of BMW OF NORTH AMERICA, INC.

Weld in REINFORCEMENT PLATES at severance cuts.
