41 11 015 Replacing Front Left Or Right Engine Support With Wheel Arch

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Following new body parts are required:

(2) Wheel arch, front
(1) Carrier support, wheel arch

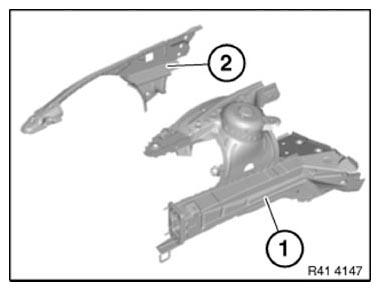

Fig 1: Identifying Wheel Arch (Front) And Carrier Support

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the wheel arch

Mark severance cut (1) and cut.

IMPORTANT: Cut outer metal panel only.

Open welded connections in area (2).

Installation note:

Sheet section is needed to seal bulkhead carrier support.

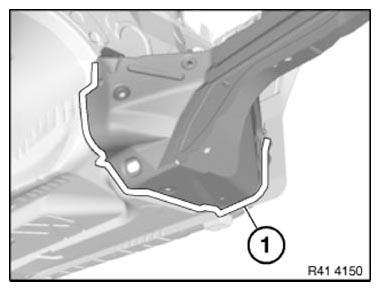

Fig 2: Identifying Weld Joint Area With Severance Cut

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Open SPOT-WELDED ADHESIVE JOINTS in area (2).

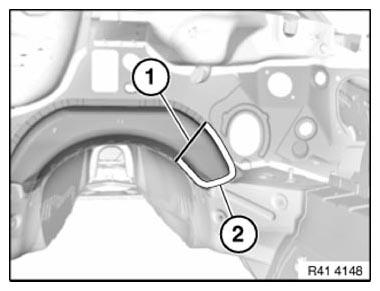

Fig 3: Identifying Welded Connections Area And Adhesive Joints Spot-Welded Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

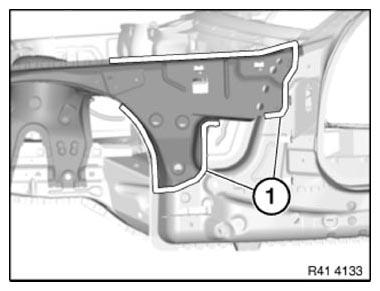

Fig 4: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

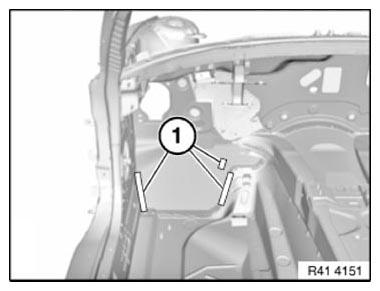

Fig 5: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Remove wheel arch with carrier support.

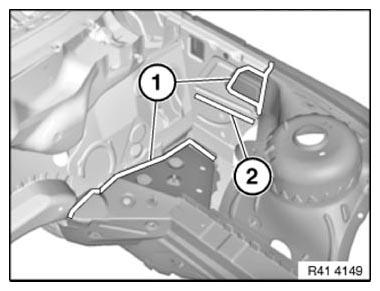

Fig 6: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Prepare REINFORCEMENT PLATE at the severance cut.

Adjust new part to fit with set of attachments or universal mount.

Installation of engine support with wheel arch

Fit new parts and reinforcement plate using alignment bracket or universal mount and weld.
