41 35 111 Replacing Rear Right Side Panel

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage adjoining body components.

Installation information:

41 00... BODY GAP DIMENSIONS serve as basis for adjustment tasks.

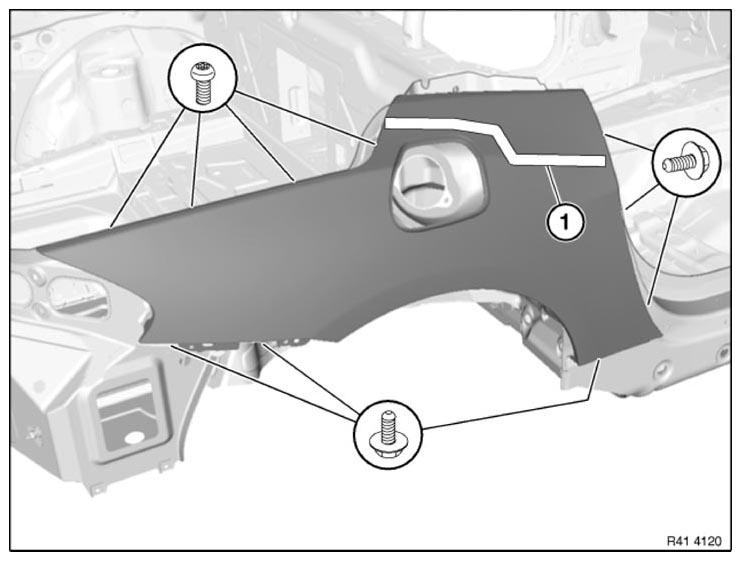

Fig 1: Removing Cavity Acoustic Baffle With Hot-Air Blower

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 41 35 5AZ .

IMPORTANT: Risk of damage!

Heat side panel in area of cavity acoustic baffle (2) with hot-air blower and carefully remove.

Installation note:

Apply sealant to cavity acoustic baffle. See INSTALLING CAVITY SEALING (EXPANDED) or INSTALLING CAVITY SEALING (NOT EXPANDED) .

Also apply sprayable sealing compound on inside of side panel in area (1). Width approx. 50 mm.

Material: Terostat 9320.

When reusing the side panel:

If necessary, apply sealing compound in area (2) between side panel and reinforcement (3).

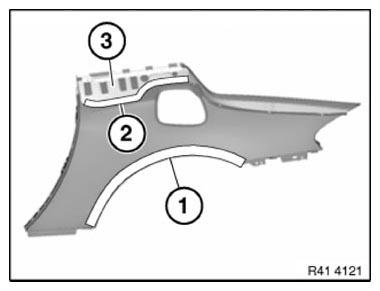

Fig 2: Identifying Side Panel With Area Between Side Panel And Reinforcement

Courtesy of BMW OF NORTH AMERICA, INC.
