41 35 101 Replacing Rear Left Side Panel

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage adjoining body parts.

Installation information:

41 00... BODY GAP DIMENSIONS serve as basis for adjustment tasks.

Partially detach trim panel (1).

Unlock and disconnect plug (2) for aerial.

Feed aerial line through hole (3).

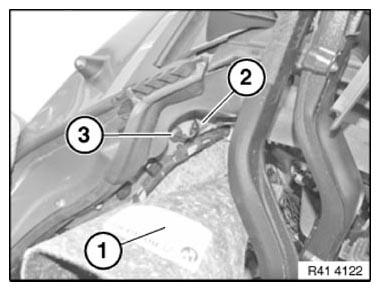

Fig 1: Identifying Trim Panel, Aerial Line And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Removing Cavity Acoustic Baffle With Hot-Air Blower

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 41 35 5AZ .

IMPORTANT: Risk of damage!

Heat side panel in area of cavity acoustic baffle (2) with hot-air blower and carefully remove.

Installation:

Apply sealant to cavity acoustic baffle.

Also apply sprayable sealing compound on inside of side panel in area (1). Width approx. 50 mm.

Material: Terostat 9320.

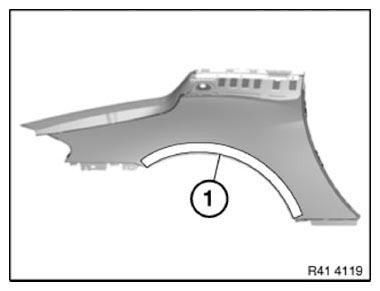

Fig 3: Identifying Side Panel Area

Courtesy of BMW OF NORTH AMERICA, INC.
