41 21 518 Replacing Left B-Pillar (Rear Left Side Panel Removed)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific procedure. See SPOT-WELD BONDING STEEL COMPONENTS and OPENING BONDED CONNECTIONS .

Use only approved SPOT-WELDING APPARATUS for repairs.

Following new body parts are required:

(1) B-pillar, outer left

Fig 1: Identifying B-Pillar (Outer Left)

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the B-pillar

Open welded connections in areas (1).

Open brazed connection in area (2).

Undo B-pillar from cavity sealing (3) and remove.

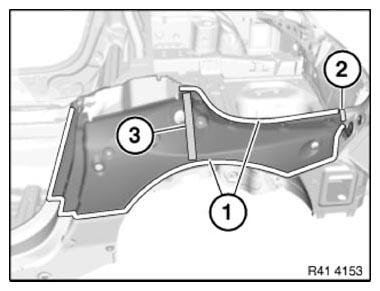

Fig 2: Identifying Weld, Brazed Joints Area And Cavity Sealing Area

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Fit in new part.

Installation of outer wheel arch section

Apply sealant to CAVITY SEALING .

Install new part and weld.
