41 62 519 Removing And Installing And Replacing Left Or Right Hinge For Rear Lid

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Remove GAS PRESSURE SPRING (1).

Unfasten screws (2).

Tightening torque 41 62 1AZ .

IMPORTANT: Secure rear lid against falling down, remove if necessary.

Release screws (3).

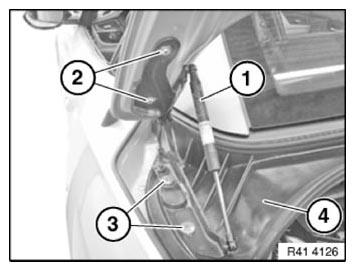

Fig 1: Identifying Gas Pressure Spring, Screws And Sealing Compound

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 41 62 3AZ .

Remove hinge.

Installation:

Replace sealing compound between hinge and rear module (4).

Adjust rear lid on the basis of the 41 00... BODY GAP DIMENSIONS .
