41 63 002 Replacing Cover Bowl

Necessary preliminary tasks:

Remove FLAP FOR FUEL FILLER NECK  (1).

Turn cover (1) through approx. 90° and lever out in direction of arrow.

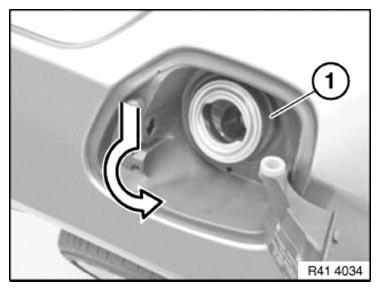

Fig 1: Removing Cover With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Press retaining strap (1) inwards and remove.

Remove fuel tank cap.

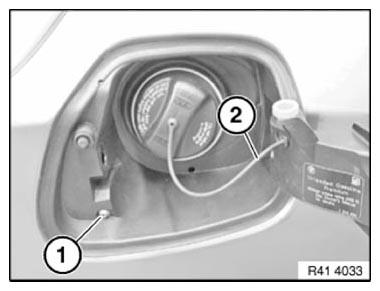

Fig 2: Identifying Retaining Strap With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Press rear cover housing in direction of arrow downwards a little and then pull outwards.

In so doing, lift seal (1) over fuel filler neck (2).

If necessary, apply suitable antiseize agent between seal and fuel filler neck.

Fig 3: Lifting Seal Over Fuel Filler Neck

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locks (1) on left/right of cover (2) must not be damaged.

Fig 4: Identifying Locks And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of cover housing not be damaged or missing:

1. Catches, top/bottom
2. Spring
3. Catch, fuel tank flap
4. Seal

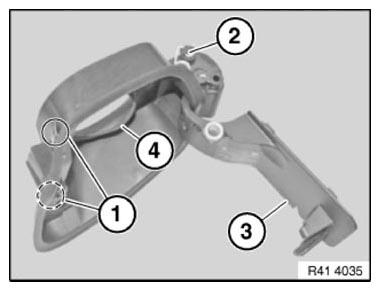

Fig 5: Identifying Catches, Top/ Bottom, Spring, Fuel Tank Flap And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, apply suitable antiseize agent to seal and fuel filler neck.
