41 12 653 Replacing Luggage Compartment Floor, Left Section (Tail Panel And Side Panel Removed)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Observe procedure for REPAIR STAGE 2 .

Following new body parts are required:

(1) Luggage compartment floor, left section
(2) End plate, rear ventilation, left

Following CONSUMABLES are required:

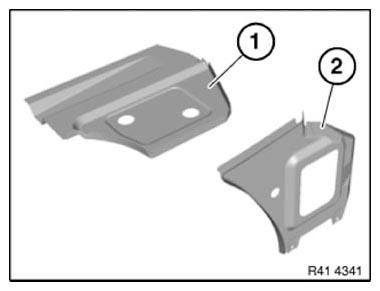

Fig 1: Identifying Luggage Compartment Floor (Left Section) And End Plate - Rear Ventilation (Left)

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K5a	1
Blind rivets N3	9
Blind rivets N6	6
Punch rivets N4	4
EMC screws	4
Cleaning agent R1	1
Sealant D1

Removal of luggage compartment floor

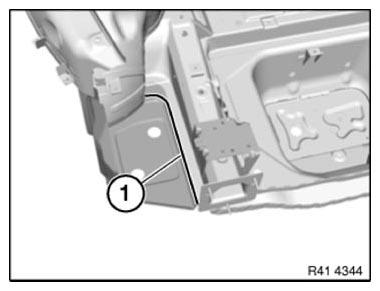

Open welded connections in area (1).

Fig 2: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

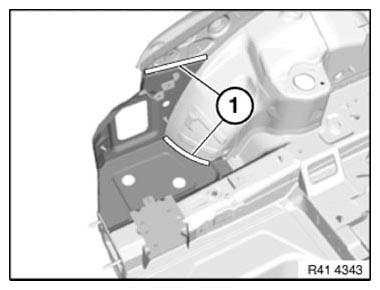

Open welded connections in areas (1).

Fig 3: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

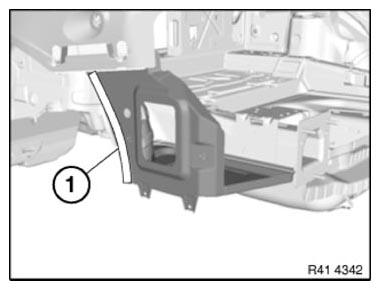

Mark severance cut (1) in radius and cut.

Remove luggage compartment floor and rear ventilation end plate.

Fig 4: Identifying Severance Cut (Radius)

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Mark new luggage compartment floor in accordance with severance cut on vehicle + 20 mm extra material and cut.

Adjust new part in combination with tail panel to fit and secure.

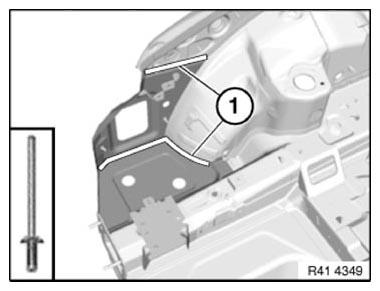

Set 9 4.2 mm dia. holes for blind rivets in areas (1).

Fig 5: Identifying Rivets Hole Area

Courtesy of BMW OF NORTH AMERICA, INC.

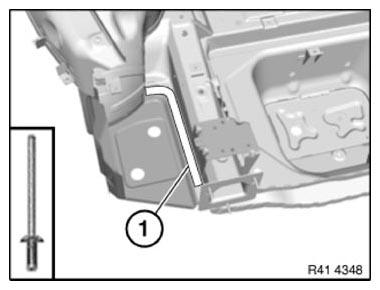

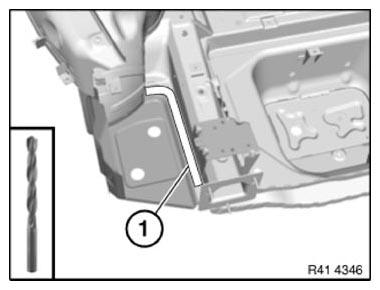

Set six 4.2 mm diameter bore holes for blind rivets in area (1).

Remove new parts again and deburr holes.

Fig 6: Identifying Rivets Hole Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind new parts and body in area of bonding surfaces.

Installation of luggage compartment floor

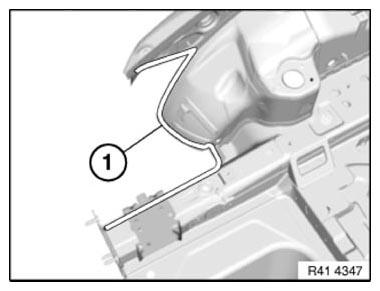

Clean all bonding surfaces (1) on new parts and on vehicle with cleaning agent R1!

Apply adhesive to bonding surfaces.

Fig 7: Identifying Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

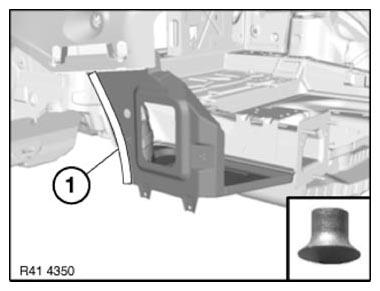

Install new parts and rivet in area (1) with blind rivets N6.

Fig 8: Identifying New Parts Rivet Area

Courtesy of BMW OF NORTH AMERICA, INC.

Use blind rivets N3 in areas (1).

Fig 9: Identifying Blind Rivets (N3) Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Use 4 punch rivets N4 in area (1).

Fig 10: Identifying Punch Rivets (N4) Area

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive in area (1), install 1 EMC SCREW .

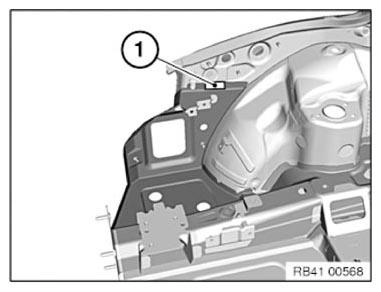

Fig 11: Identifying Adhesive Hardened Area

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) install 3 EMC screws.

Fig 12: Identifying EMC Screws Installation Area

Courtesy of BMW OF NORTH AMERICA, INC.
