41 12 557 Stripping operations - Replacing luggage compartment floor, middle (tail panel removed)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Remove exhaust system
Remove heat shield
Remove battery
Remove hydraulic unit (engine) for retractable hard top

Release snap fasteners (1), disconnect lines.

Unfasten screws (2).

Remove carbon canister (3).

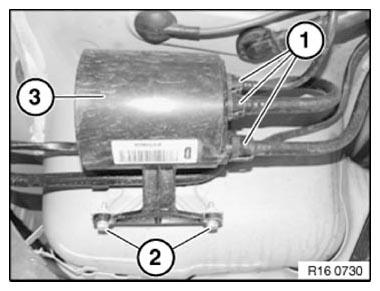

Fig 1: Identifying Snap Fasteners, Screws And Carbon Canister

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug (1) and pull cable through luggage compartment floor.

Release screw (2).

Remove positive point.

Unscrew nut (3).

Remove earthing cable.

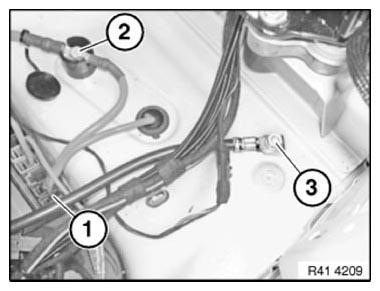

Fig 2: Identifying Plug, Screw And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
