41 12 548 Replacing Rear Cross Member On Luggage Compartment Floor (Tail Panel Removed): Notes

Read contents of BODY, GENERAL .

STRIP DOWN VEHICLE .

Observe procedure for REPAIR STAGE 2 .

Following new body parts are required:

• (1) Cross member, luggage compartment floor, rear

Following CONSUMABLES  are required:

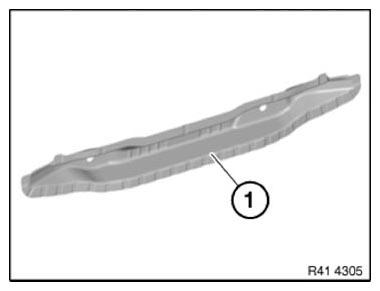

Fig 1: Identifying Cross-Member - Luggage Compartment Floor (Rear)

Courtesy of BMW OF NORTH AMERICA, INC.

Removing cross-member

Open welded connections in areas (1).

Fig 2: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

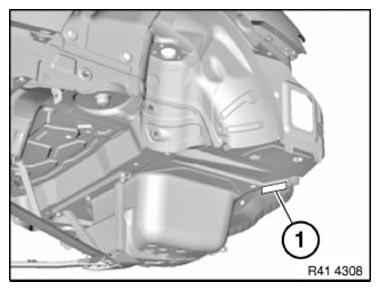

Open welded connections in areas (1).

Fig 3: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

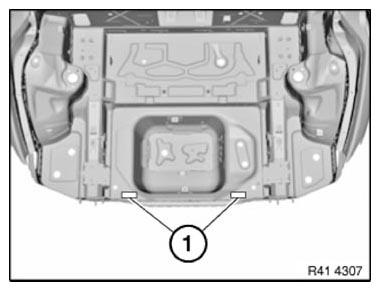

View from below.

Operation is described on the left side. Right side identical.

Open welded connections in area (1).

Remove cross member.

Fig 4: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

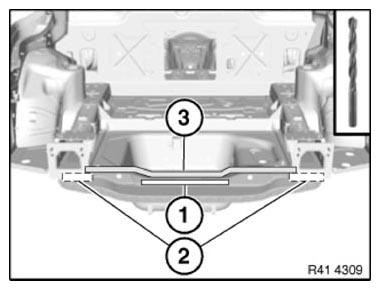

Adjust cross-member in combination with tail panel to fit and secure.

Set three 4.2 mm dia. holes for blind rivets in area (1).

Set four 4.2 mm dia. holes for blind rivets in areas (2).

Set holes with adjusted tail panel in area (3).

Remove new parts again and deburr holes.

Fig 5: Identifying Blind Rivets Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installing cross-member:

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

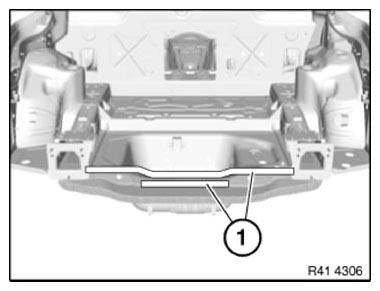

Apply adhesive to bonding surfaces (1) and to corresponding bonding surfaces on new part.

Fig 6: Identifying Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

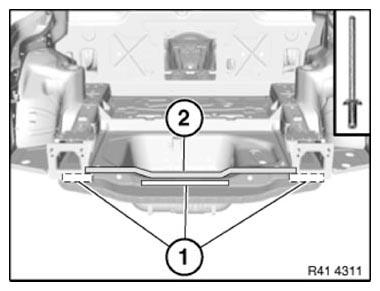

Install cross-member and rivet in area (1) with blind rivets.

Rivet cross-member in combination with tail panel in area (2).

Fig 7: Identifying Cross-Member And Tail Panel Rivet Area

Courtesy of BMW OF NORTH AMERICA, INC.

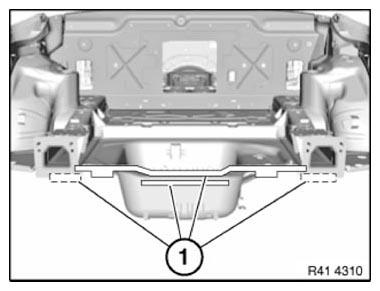

After hardening of the adhesive install 4 EMC SCREWS  in the areas shown (1).

Fig 8: Identifying EMC Screws Installation Area

Courtesy of BMW OF NORTH AMERICA, INC.
