41 33 040 Replacing Front Wall

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Following new body parts are required:

(1) Front panel

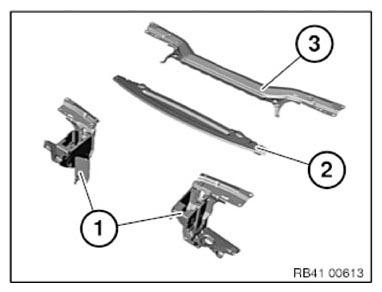

Fig 1: Identifying Front Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove front panel.

Fig 2: Identifying Front Panel Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install new parts.

(1) and (2) tightening torque 41 33 1AZ .

(3) tightening torque 51 11 3AZ .

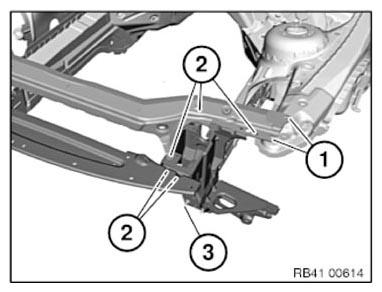

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.
