51 23 400 Removing And Installing/Replacing Left Or Right Actuator (Active Pedestrian Protection)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Adhere to SAFETY INFORMATION so as to avoid a danger of injury by the actuator.

The BATTERY NEGATIVE LEAD must be clamped off prior to work on the actuator or engine compartment lid!

Do not exert any force on the actuator.

Incorrect handling may result in triggering of the actuator and thereby cause serious injury.

Necessary preliminary work:

Disconnect BATTERY EARTH LEAD .

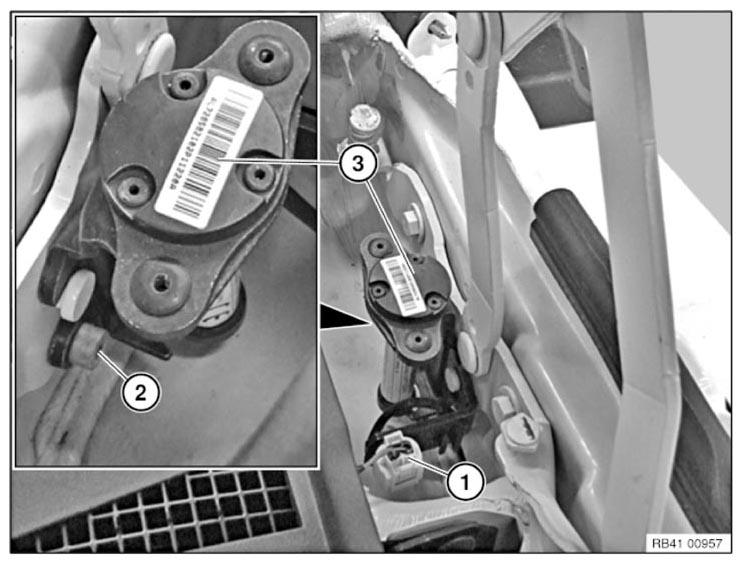

Fig 1: Identifying Actuator, Plug Connection And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Release bolt (2) and remove actuator (3).

Tightening torque 41 61 4AZ .

Comply with notes regarding handling active PEDESTRIAN PROTECTION .
