41 00... Stamping Vehicle Identification Number (Needle Stamping Unit)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with GENERAL INFORMATION .

The needle stamping system 360 - VRM - BMW is required to stamp the vehicle identification number.

Order number: 81 43 2 155 736

Fig 1: Identifying Display, Mains Adapter, Needle Stamping Unit, Connecting And Power Cable

Courtesy of BMW OF NORTH AMERICA, INC.

The needle stamping system 360 tool set comprises:

(1) Display
(2) Mains adapter
(3) Needle stamping unit
(4) Connecting cable
(5) Power cable
(6) Compressed-air hose

NOTE: A compressed-air connection is also required.

Operating pressure approx. 6 bar
Use only dry, oil-free air

Procedure for additional vehicle identification number

Cross through original vehicle identification number.

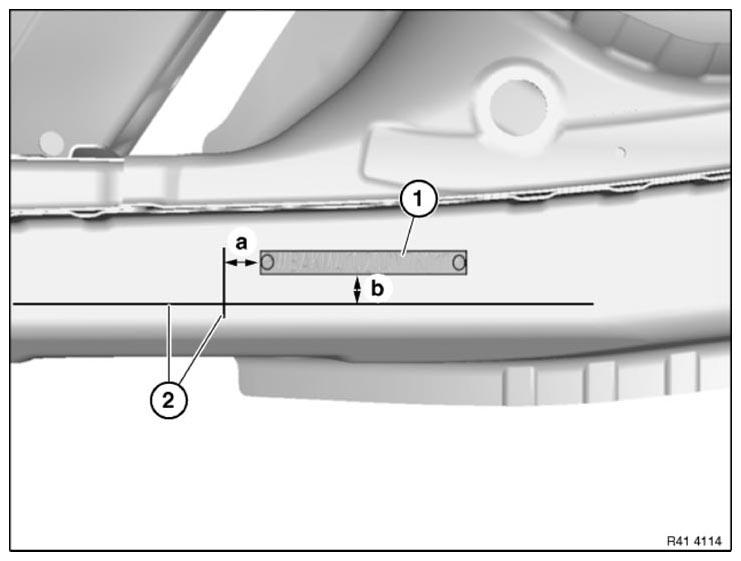

Fig 2: Identifying Position Lines For Additional Vehicle Identification Number

Courtesy of BMW OF NORTH AMERICA, INC.

(1) = original vehicle identification number.

Mark position lines (2) in accordance with specified dimensions/measurements.

Dimension a = 12 mm

Dimension b = 10 mm

Display input:

Select Layout 5 with arrow button.
Enter vehicle identification number with F10.
Press "ENTER" button.

NOTE: With Layout 5 the vehicle identification number (line 1) is crossed through.

Fig 3: Identifying Display Unit

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Perform stamping operation with position lines in advance on a test sheet.

Fig 4: Identifying Needle Stamping Unit Suction Feet Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Move suction feet of needle stamping unit to positions (1) and (2) shown.

NOTE: The contact surface for the suction cups of the needle imprint device must be dry and free of dust and grease!

Make sure the unit is resting securely in position. If necessary, adjust the height and position of the suction feet.

Press pushbutton (1) for vacuum pressure.

Then start stamping operation with pushbutton (2).

After completing the stamping operation, switch off vacuum and set unit down.

Fig 5: Performing Stamping Operation

Courtesy of BMW OF NORTH AMERICA, INC.

Stamping second vehicle identification number

NOTE: The second vehicle identification number is stamped at the height of the spring strut dome.

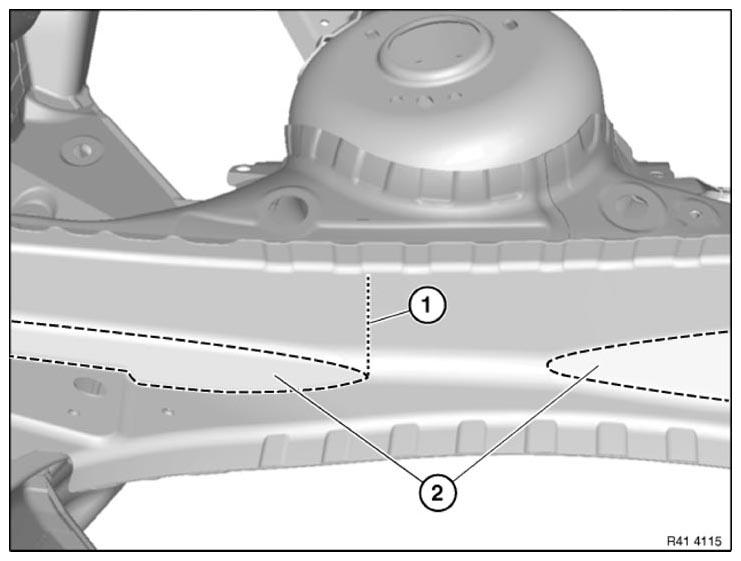

Fig 6: Identifying Help Line And Reference Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Mark help line (1) in accordance with reference surfaces (2).

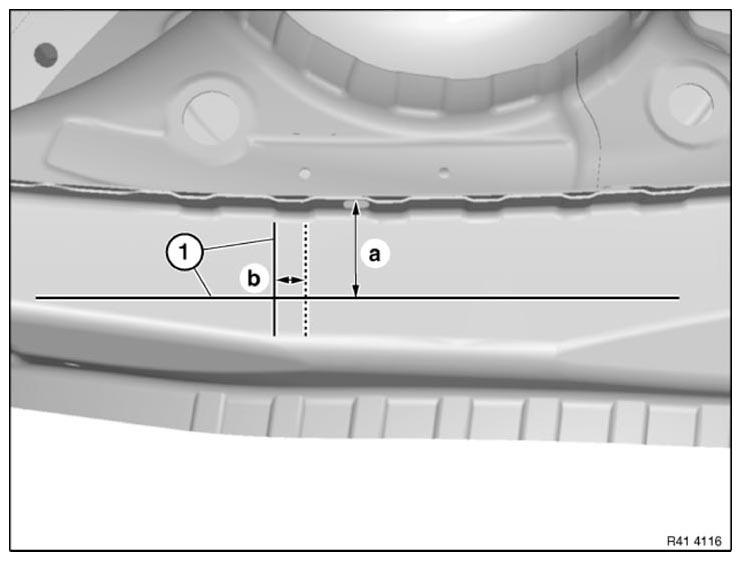

Fig 7: Marking Position Lines In Accordance With Specified Dimensions/Measurements

Courtesy of BMW OF NORTH AMERICA, INC.

Mark position lines (1) in accordance with specified dimensions/measurements.

Dimension a = 45 mm

Dimension b = 15 mm

Display input:

Select Layout 1 with arrow button.
Press "ENTER" button.

NOTE: With Layout 1 the already entered vehicle identification number is stamped in line 1.

Fig 8: Identifying Display Unit

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Perform stamping operation with position lines in advance on a test sheet.

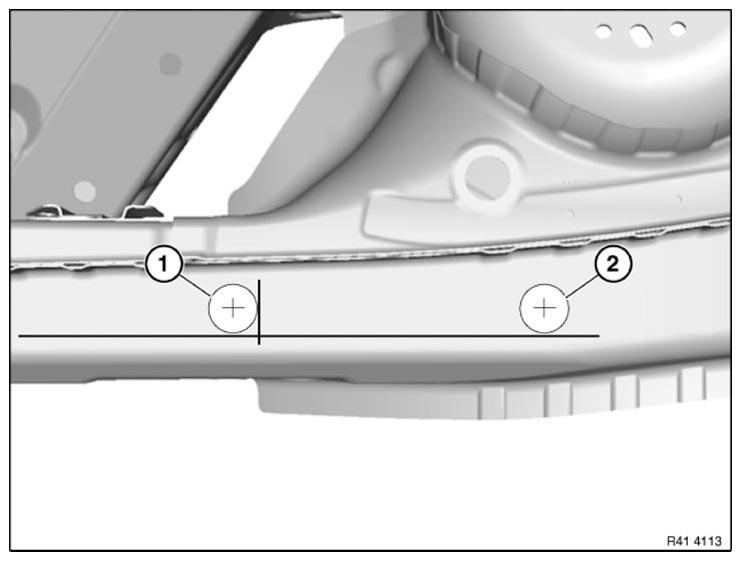

Fig 9: Identifying Needle Stamping Unit Suction Feet Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Move suction feet of needle stamping unit to positions (1) and (2) shown.

First adjust position (1)
Then adjust position (2)

Press pushbutton (1) for vacuum pressure.

Then start stamping operation with pushbutton (2).

Fig 10: Performing Stamping Operation

Courtesy of BMW OF NORTH AMERICA, INC.

Following layout functions are available:

Layout selection	Vehicle identification number
Layout 1	In line 1
Layout 2	In line 2
Layout 3	Turned through 180° in line 1
Layout 4	Turned through 180° in line 2
Layout 5	Cross through in line 1
Layout 6	Cross through in line 2
