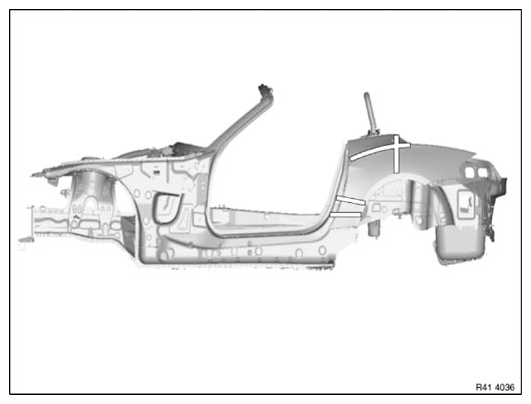

41 00... Position Of Shaped Parts For Cavity Acoustic Baffle
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Cavity sealing is carried out in specific body areas in order to reduce internal noise and to reduce condensate. To do this, shaped parts are inserted in the cavities. These shaped parts adapt themselves optimally due to heating of the body to approx. 180°C by expansion to the shape of the cavities.
Because it is not possible to heat the body to this extent for a body repair, a different procedure has been specified for this situation. See INSTALLING CAVITY SEALING (EXPANDED) , INSTALLING CAVITY SEALING (NOT EXPANDED) , and INSTALLING A CAVITY SEALING WITH 2-COMPONENT PU CAVITY FOAM .
