41 00 505 Checking Front Body Structure

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT UNDERBODY PROTECTION

Structural damage can be identified by measuring with a beam trammel.

Here, symmetrically arranged points on the vehicle are measured in diagonal sequence.

If the two measured values are identical, there is no damage to the vehicle.

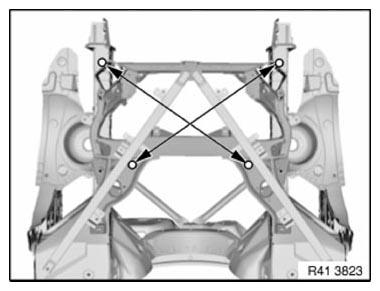

Fig 1: Measuring Symmetrically Arranged Points In Diagonal Sequence On Vehicle

Courtesy of BMW OF NORTH AMERICA, INC.

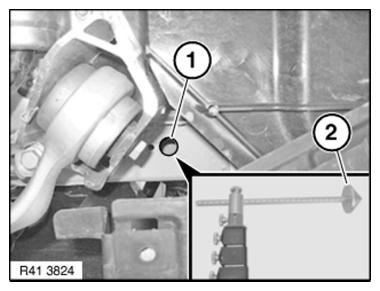

In front area use conical adapter (2) at bore hole (1).

Fig 2: Identifying Conical Adapter And Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

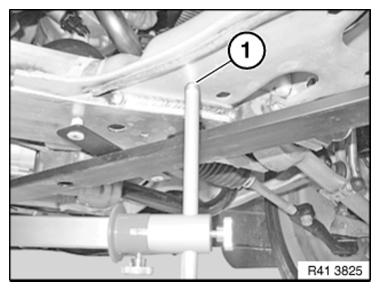

Use 8 mm dia. bore hole (1) on front axle support.

Fig 3: Identifying Bore Hole On Front Axle Support

Courtesy of BMW OF NORTH AMERICA, INC.
