25 12 060 Replacing gearshift lever knob for twin-clutch gearbox N54

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Release installation frame (1) from center console.

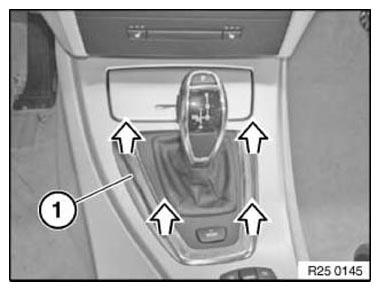

Fig 1: Releasing Installation Frame From Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plugs (1) and (2).

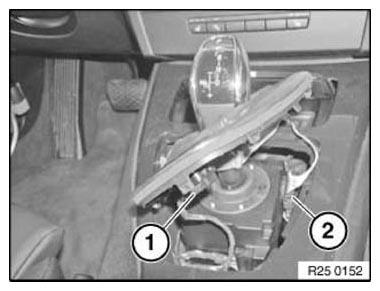

Fig 2: Identifying Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not twist shift lever knob during removal as this would cause the anti-twist lock in the knob to shear off.

Tug firmly to remove knob.

Installation:

Fit shift lever knob on shift lever, align and press on until it snaps noticeably into place.

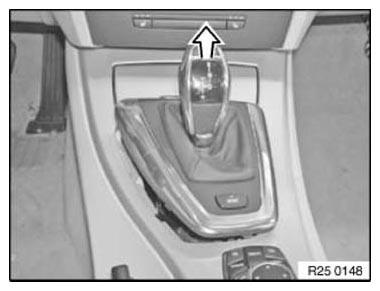

Fig 3: Pressing Gearshift Lever Knob

Courtesy of BMW OF NORTH AMERICA, INC.
