25 11 245 Replacing gearshift arm support bearing

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove complete EXHAUST SYSTEM .
Remove rear UNDERBODY PROTECTION .
Remove heat shield.

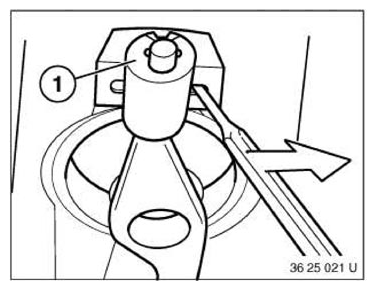

Lever support bearing (1) with a short screwdriver out of mounting.

Pull support bearing off gearshift arm.

Fig 1: Pulling Support Bearing Gearshift Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Grease bearing pin of gearshift arm using SPECIFIED GREASE .

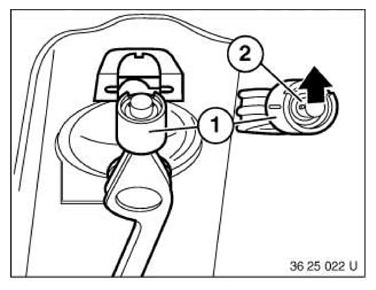

Fit support bearing (1) with recess (2) towards top rear onto mounting.

Fig 2: Fitting Support Bearing With Recess

Courtesy of BMW OF NORTH AMERICA, INC.
