25 11 111 Replacing shift rod joint

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release propeller shaft at transmission and center mount, tie propeller shaft to one side
Remove PROPELLER SHAFT .

Lift off retainer (1).

Clamp off shift rod (2).

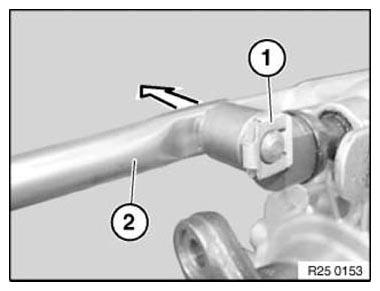

Fig 1: Detaching Gearshift Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Grease shift rod.

IMPORTANT: New retaining clips fitted as from 04.08.

Retaining clip must interlock captively with retaining web (1) behind shift rod pin.

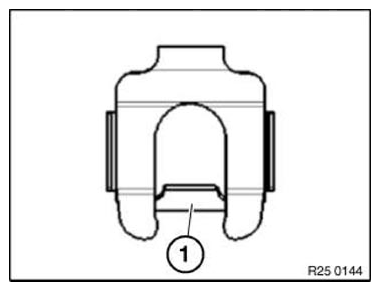

Fig 2: Identifying Interlock Captively Retaining Web

Courtesy of BMW OF NORTH AMERICA, INC.

Lever spring washer (1) out of groove and push a little towards rear.

Press dowel pin (2) upwards/downwards out of shift rod joint and remove shift rod joint.

Installation:

Grease ball of selector shaft.

Replace spring washer (1).

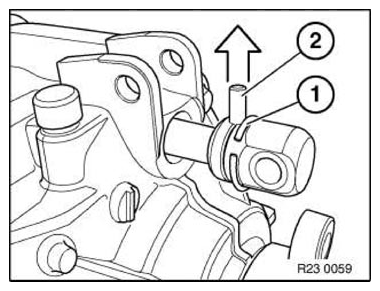

Fig 3: Replacing Spring Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check rubber ring (1) in shift rod joint (2) and replace if necessary.

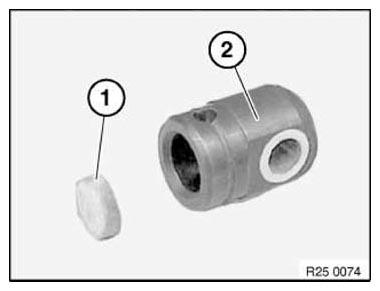

Fig 4: Identifying Rubber Ring And Gearshift Rod Joint

Courtesy of BMW OF NORTH AMERICA, INC.
