25 11 101 Replacing shift rod

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear assembly underside protection
Release bracket for exhaust system on transmission
Remove heat shields
Remove TRANSMISSION CROSS-MEMBER .

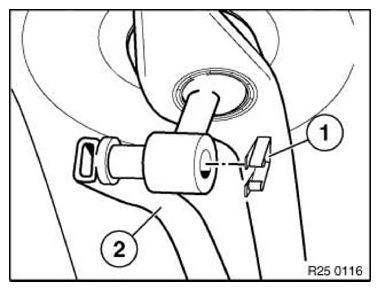

Detach locking clip.

Fig 1: Detaching Locking Clip

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: New retaining clips fitted as from 04.08.

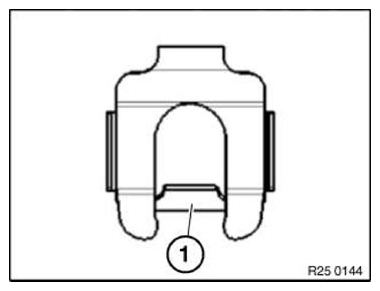

Retaining clip must interlock captively with retaining web (1) behind shift rod pin.

Fig 2: Identifying Interlock Captively Retaining Web

Courtesy of BMW OF NORTH AMERICA, INC.

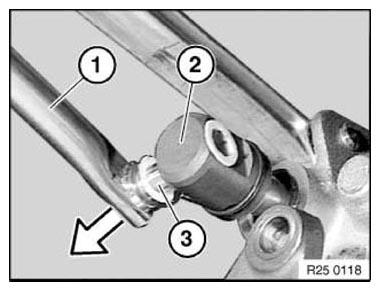

Pull shift rod (1) out of shift rod joint (2).

Installation:

Grease shift rod pin (3) using SPECIFIED GREASE .

Fig 3: Pulling Gearshift Rod From Gearshift Rod Joint

Courtesy of BMW OF NORTH AMERICA, INC.

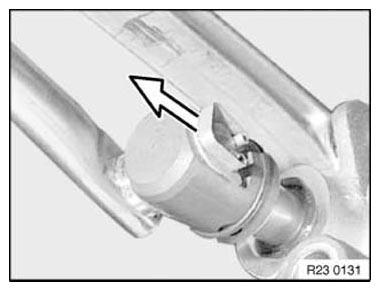

Detach locking clip (1).

Remove selector rod (2).

Installation:

Grease selector rod pin using SPECIFIED GREASE .

Fig 4: Removing Selector Rod

Courtesy of BMW OF NORTH AMERICA, INC.
