25 11 071 Replacing knob for shift lever

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Pull installation frame of gaiter (1) from front upwards out of center console.

IMPORTANT: Do not use a tool, as this would damage the installation frame or the center console.

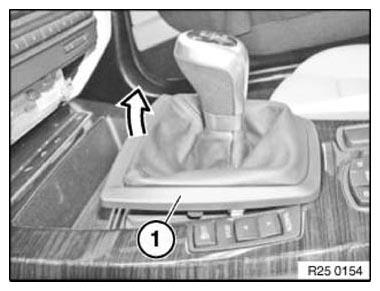

Fig 1: Pulling Installation Frame Of Gaiter From Front Upwards Out Of Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not twist knob during removal as this would cause the turning lock in the knob to shear off.

Tug firmly to remove knob.

Installation:

Fit knob on shift lever, align and press on until it snaps noticeably into place.

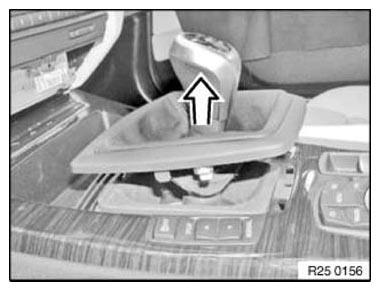

Fig 2: Removing Shift Lever Knob

Courtesy of BMW OF NORTH AMERICA, INC.
