25 11 001 Replacing complete gearshift lever

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove GEARSHIFT LEVER .

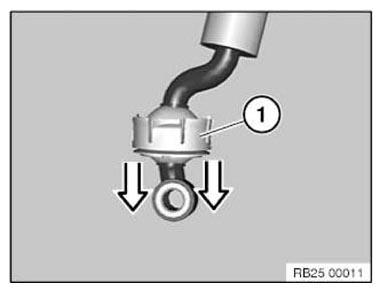

Pull ball socket (1) off the gearshift lever.

Installation note:

Grease ball joint using SPECIFIED GREASE .

Fig 1: Pulling Ball Socket Off Gearshift Lever

Courtesy of BMW OF NORTH AMERICA, INC.

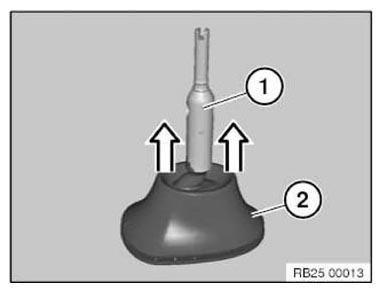

Detach rubber boot (2) from gearshift lever (1).

Fig 2: Detaching Rubber Boot From Gearshift Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

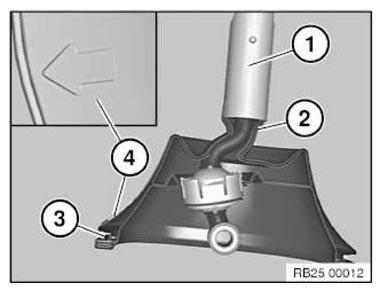

Degrease gearshift lever (1).

Coat rubber boot on inside of shaped element (2) with Circo Light.

Pull rubber boot from above over gearshift lever (1) and align. Arrow (4) on rubber boot must point in direction of travel.

Fig 3: Identifying Gearshift Lever, U-Type Bellows Shaped Element And Lip

Courtesy of BMW OF NORTH AMERICA, INC.
