54 37... Adjusting roof shells

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

Necessary preliminary tasks:

Remove ROOFLINER FOR ROOF SHELL AT REAR
Close soft top.

IMPORTANT: The roof shells may only be adjusted when the soft top is closed.
The retaining hooks must be locked!

Release screws (1) on both sides of vehicle.

Adjust roof shell with spacer plates (2).

Installation note:

The difference in compensation must not exceed 2.5 mm.

Tighten down screws (1) on both sides of vehicle.

Tightening torque 54 37 11AZ .

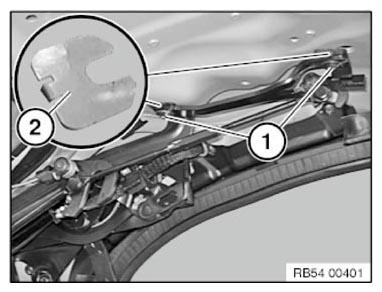

Fig 1: Identifying Spacer Plates And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check 41 00... BODY GAP DIMENSIONS . Use special tool 00 9 340 .

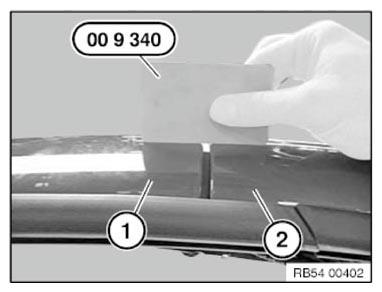

Fig 2: Checking Gap Dimensions Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.
