54 37 295 Emergency closing hardtop

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Open tailgate
Remove LUGGAGE COMPARTMENT FLOOR

IMPORTANT: Always perform the emergency closing procedure with the aid of an assistant.
Only move the soft top manually when the ignition is switched off.
Danger of damage to hydraulic valves.
The applied force must always be even on the left and right otherwise the linkage will bend.
Always execute all movements of the roof module with the assistance of a second person.
Danger of injury by trapping!

Remove foam cover.

Open screws on hydraulic unit 1.5 turns.

Fig 1: Opening Screws On Hydraulic Unit

Courtesy of BMW OF NORTH AMERICA, INC.

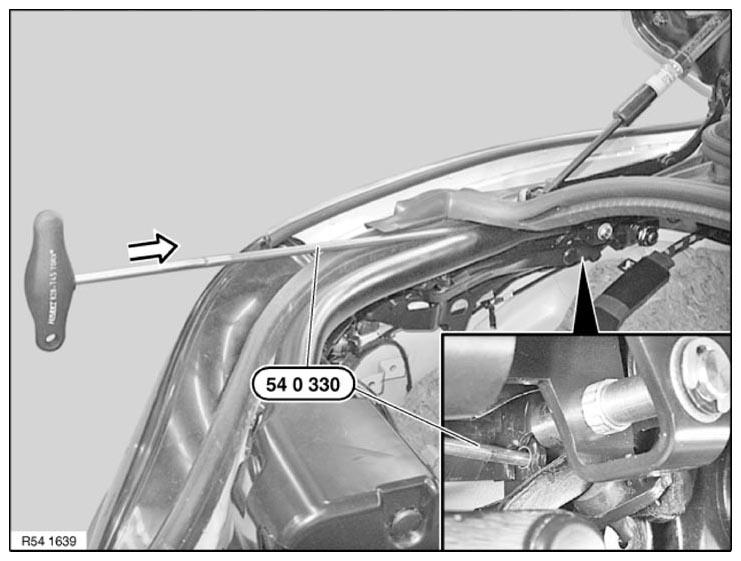

Fig 2: Inserting Special Tool (54 0 330) Between Soft Top Compartment Lid Frame And Side Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 54 0 330 at rear left and right between soft top compartment lid frame and side wall.

Feed in tip of special tool through bore hole.

NOTE: Bore hole is visible from direction of special tool with a torch.

Fig 3: Installing Tip Of Special Tool Through Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Tip of special tool 54 0 330 must butt against joint for hydraulic cylinder (1).

Fig 4: Attaching Special Tool (54 0 330) With Joint For Hydraulic Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

For the ideal pressure point of special tool on joint, proceed as follows:

Press outwards
Pull tool upwards
Press tool to unlock soft top compartment lid latch

Fig 5: Pressing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Open soft top compartment cover.

IMPORTANT: Soft top compartment lid may tilt forwards and must be supported with suitable auxiliary materials.

Fig 6: Identifying Convertible Top Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right from holder.

Fig 7: Identifying Holder Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out roof shells uniformly with a 2nd person helping and set down.

NOTE: Only grasp the front roof shell when raising the roof shells.

Fig 8: Lifting Out Roof Module

Courtesy of BMW OF NORTH AMERICA, INC.

Remove support for soft top compartment lid (1) and set down soft top compartment lid.

Raise rear roof shell (2) and remove ROOFLINER .

Set down roof shell (2) towards rear (soft top closed).

Remove ROOFLINER for roof shell at front.

Fig 9: Lifting Roof Module With Assistant On Vehicle

Courtesy of BMW OF NORTH AMERICA, INC.

Slide open retaining clip (1) and unclip ball head.

Secure control rod on left and right with cable strap to prevent them hanging down and rattling.

Fig 10: Sliding Open Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Lock retaining hook (1) on left and right.

Turn retaining hook (1) with pliers over dead center.

Fig 11: Turning Retaining Hook Using Pliers Over Dead Center

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 54 0 320 in soft top linkage and lock rear roof shell on left and right.

Fig 12: Inserting Special Tool 54 0 320 On Soft Top Frame

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The customer must no longer operate the soft top after it has been closed with the emergency closing procedure!
For protection, remove fuse 12 for soft top.
Place removed separate components in vehicle.
