54 37 160 Removing rear module

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Connect battery charger
Remove LOADING EDGE LID
Remove COVER FROM TAIL PANEL

Open soft top compartment cover.

IMPORTANT: Soft top compartment lid may tilt forwards and must be supported with suitable auxiliary materials.

Fig 1: Identifying Convertible Top Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Generously cover bumper area (loading edge) with protective covers (1).

Fig 2: Identifying Cover Bumper Area (Loading Sill) With Protective Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Measure distance A between rear module kinematics.

Installation note:

Adjust distance A.

Basic adjustment dimension e.g. for replacement:

A = 770.3 mm.

Fig 3: Adjusting Distance Between Rear Module Kinematics

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Tailgate must be closed.

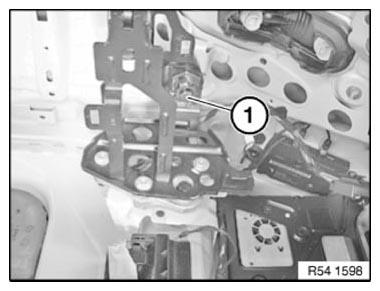

Unlock and disconnect plug connection (1) on right main bearing.

Fig 4: Identifying Plug Connection On Right Main Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Connect special tool 61 4 250 to vehicle-side connector for rear module.

NOTE: Adapter simulates closed tailgate. Retractable hardtop without tailgate not in working order.

Fig 5: Identifying Special Tool (61 4 250)

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Tightening torque 54 37 1AZ .

NOTE: Do not adjust barrel screws.

Replacement only:

Bring barrel screws into contact with special tool 54 0 180 in conjunction with special tool 00 9 450 .

Tightening torque 54 37 10AZ .

Fig 6: Identifying Barrel Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Before removing, mark position of screws (1) to ensure correct alignment during installation.
Do not release screws.

Fig 7: Identifying Barrel Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Proceed with the greatest possible caution when carrying out the following repair work.
Risk of damage!
Two persons are essential for helping to carry out the following tasks.

IMPORTANT: Rear module sinks if incorrectly supported. Risk of damage!

Position a helper on both the left and right sides of the rear module.

Grip rear module with two hands on rear module kinematics and hold supporting in Z -direction.

NOTE: Console is double-jointed and bends.

Fig 8: Identifying Helper On Both Sides Of Rear Module

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach clamps (1) on left and right.

Drive out pin.

Fig 9: Detaching Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right from bearing support.

Tightening torque 54 37 13AZ .

Remove rear module.

Set down rear module on a suitable support.

IMPORTANT: Do not damage any surrounding parts.

Fig 10: Identifying Barrel Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check 41 00... BODY GAP DIMENSIONS . and if necessary adjust

Carry out diagnosis.
