65 13 090 Removing and installing/replacing speaker (midrange speaker in rear side trim panel)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Unclip speaker cover (1) on side trim panel in middle with special tool 00 9 317 and remove.

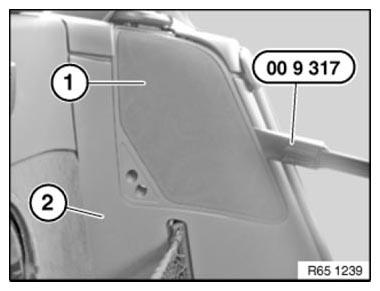

Fig 1: Opening Speaker Cover On Side Trim Panel In Middle Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

All retaining lugs on speaker cover (1) must not be damaged.

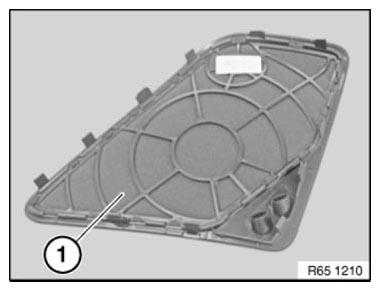

Fig 2: Identifying Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove mid-range speaker (2).

Disconnect associated plug connection.

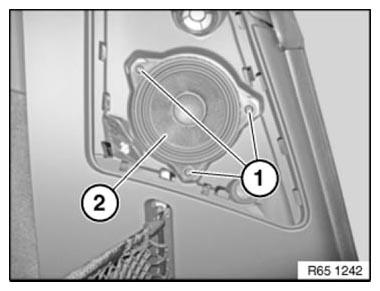

Fig 3: Identifying Mid-Range Speaker With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
