65 13 065 Removing and installing/replacing front speaker carrier (instrument panel)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Unclip trim (1) with special tool 00 9 317 from catches and remove towards top.

Fig 1: Opening Trim Using Special Tool (00 9 317) From Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) on speaker trim (2) must be correctly seated on associated lugs and must not be damaged.

Fig 2: Identifying Retainers On Speaker Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove speaker carrier (2) and disconnect associated plug connection.

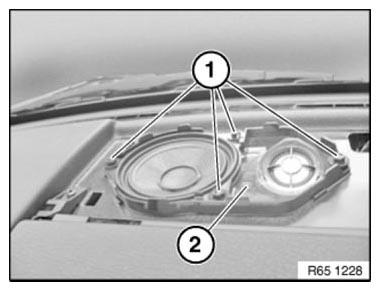

Fig 3: Identifying Speaker Carrier With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove MID-RANGE SPEAKER (1)

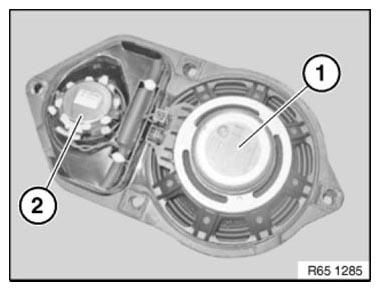

Fig 4: Identifying Mid-Range Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
