65 13 050 Removing and installing/replacing speaker (tweeter in mirror triangle trim)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MID-RANGE SPEAKER IN DOOR TRIM PANEL

Unclip speaker trim (1) first at top out of catch.

Then press speaker trim (1) downwards and remove.

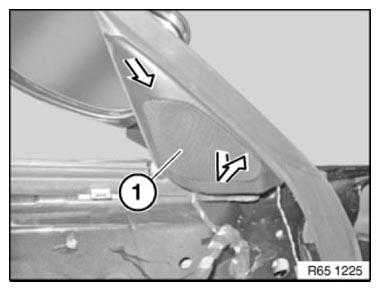

Fig 1: Removing Speaker Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unclip tweeter (1) from mountings (2) and remove.

Installation:

Retaining lugs must not be damaged.

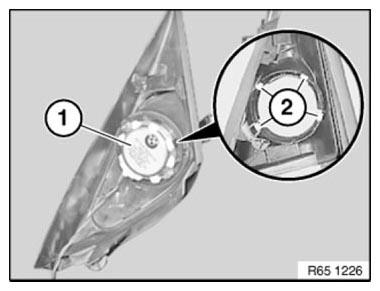

Fig 2: Identifying Tweeter On Mounting

Courtesy of BMW OF NORTH AMERICA, INC.
