65 12 050 Removing and installing/replacing left or right central bass speaker

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LOWER PARTITION TRIM PANEL

Release screws (1).

Unfasten plug connection (2) and disconnect.

Remove central bass speaker housing (3) towards front.

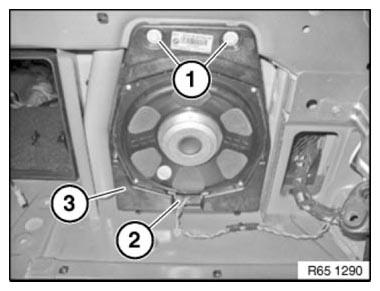

Fig 1: Identifying Central Bass Speaker Housing With Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
