Section 1368 (Audio, Navigation And Anti-Theft - Repair -- Z4_E89)
>>
Radio, Cd Changer, Amplifier, Satellite Tuner, Central Bass Speaker
>>
65 00.. Overview of audio components
65 00.. Overview of audio components
WARNING:
This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

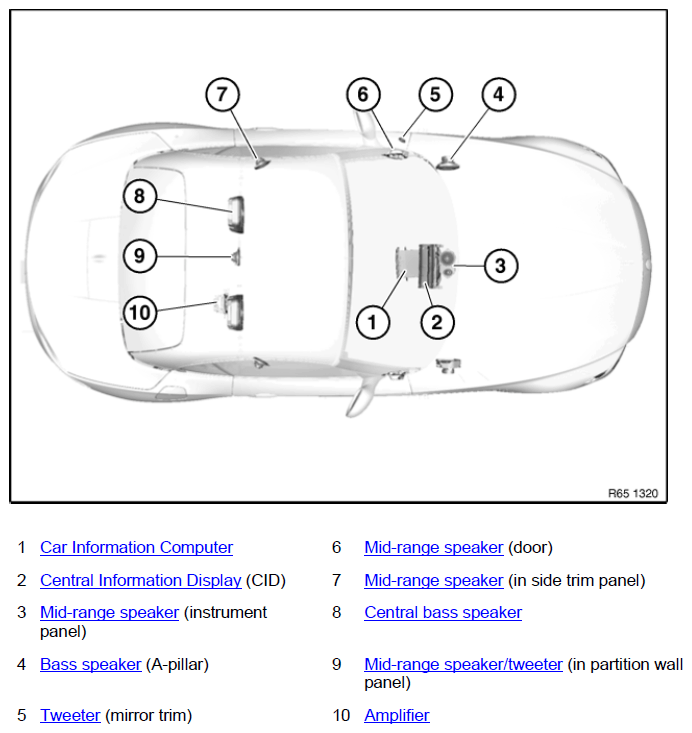

Fig 1: Overview Of Audio Components
Courtesy of BMW OF NORTH AMERICA, INC.
