65 24 020 Removing and installing/replacing blocking circuit (left or right)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ROOFLINER FOR ROOF SHELL AT REAR

Release screw (1).

Remove blocking circuit (2) from roof shell (3).

Unlock associated plug connections and disconnect.

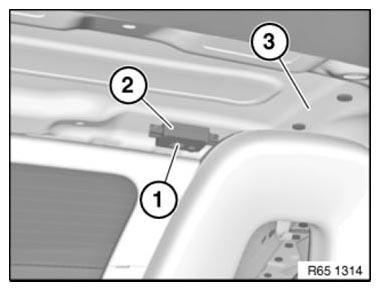

Fig 1: Identifying Roof Shell With Blocking Circuit And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit blocking circuit (1) so that screw (2) engages thread (3) and locating pin (4) engages bore (5).

Fig 2: Identifying Blocking Circuit, Screw, Thread, Locating Pin And Bore

Courtesy of BMW OF NORTH AMERICA, INC.
