Section 1361 (Heating And Air Conditioning - Repair -- Z4_E89)
>>
Safety And General Information
>>
64 00.. Overview of heater - A/C system components
64 00.. Overview of heater - A/C system components
WARNING:
This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

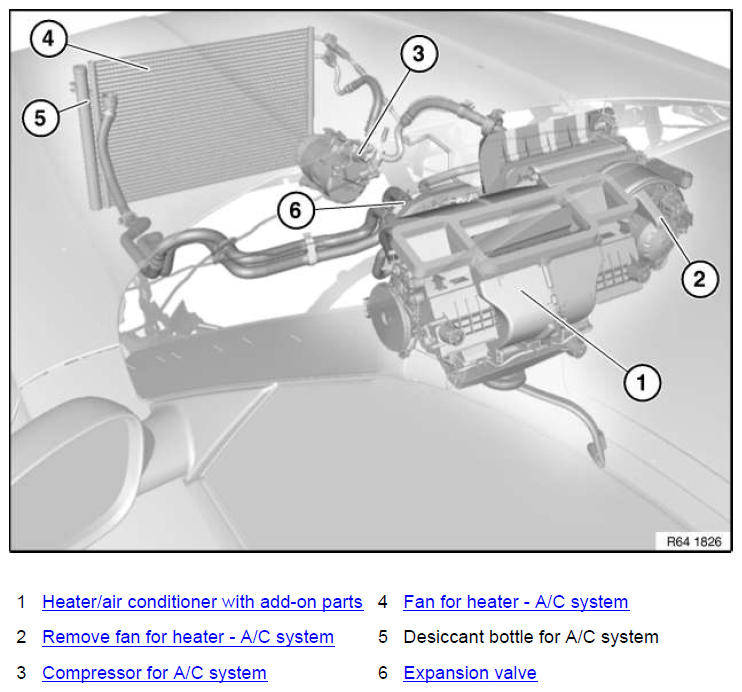

Fig 1: Overview Of Heater - A/C System Components
Courtesy of BMW OF NORTH AMERICA, INC.
