64 22 139 Removing and installing/replacing right fresh-air grille

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

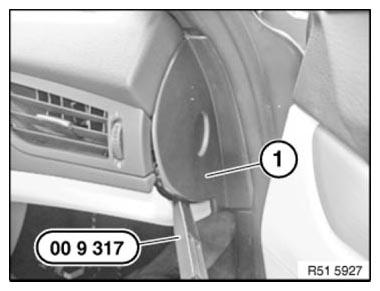

Unclip decorative trim (1) as shown with special tool 00 9 317 on left and remove.

Fig 1: Opening Decorative Trim Using Special Tool (00 9 317)

G06912065

Courtesy of BMW OF NORTH AMERICA, INC.

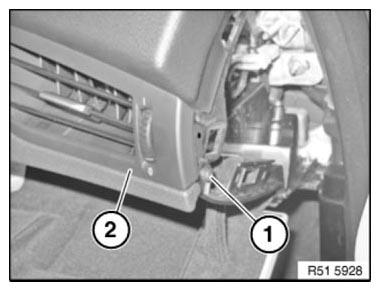

Release screw (1) on fresh-air grille (2).

Fig 2: Identifying Fresh Air-Grille With Mounting Screw

G06912066

Courtesy of BMW OF NORTH AMERICA, INC.

Open glove compartment (1).

Release screws (2) at marked points.

Fig 3: Identifying Glove Compartment With Mounting Screws

G06911657

Courtesy of BMW OF NORTH AMERICA, INC.

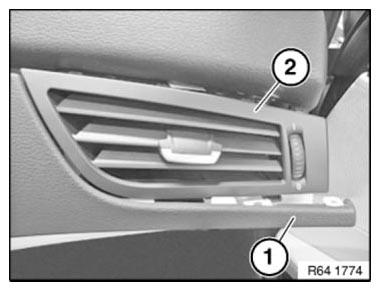

Unclip trim (1) as shown in area of fresh-air grille (2) and pull forwards slightly.

Snap out fresh-air grille (2) towards front and remove.

Fig 4: Identifying Fresh Air Grille And Trim

G06912068

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

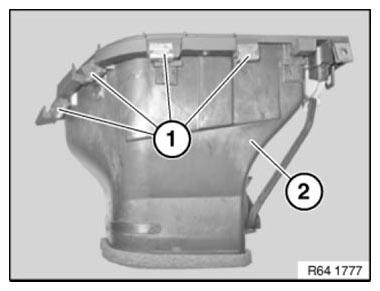

Retaining clips (1) on fresh-air grille (2) must be correctly seated on associated lugs.

Fig 5: Identifying Retaining Clips On Fresh-Air Grille

G06912069

Courtesy of BMW OF NORTH AMERICA, INC.
