64 11.. Overview of actuator drives on heater/air conditioner

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

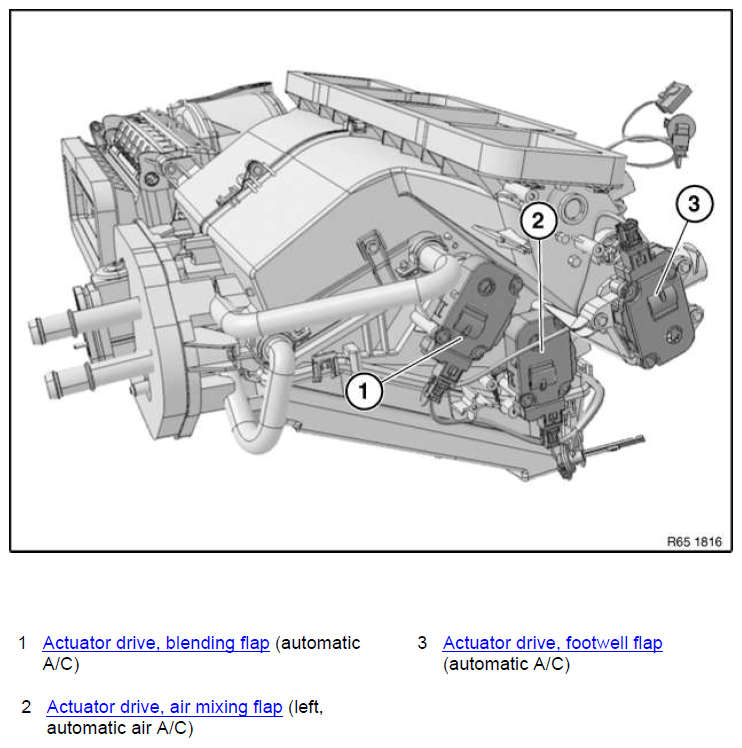

Fig 1: Overview Of Actuator Drives On Heater/Air Conditioner
G11153403Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The High equipment specification heater/air conditioner is pictured!
Fig 2: Identifying Actuator Drives For Blending, Footwell And Air Mixing Flaps
G11153404Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The High equipment specification heater/air conditioner is pictured!
