13 51 017 Removing and installing/replacing high pressure pump (N54)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING:

Observe warning on cylinder head cover.

Disconnect NEGATIVE BATTERY TERMINAL (risk of fire due to short-circuiting on dismantling).

Electric fuel pump starts up automatically when door is opened!

Carry out installation work on fuel system only with coolant temperature below 40°C.

Wear full face guard and protective gloves.

Fuel can emerge spontaneously at high speed when the high pressure line is released!

IMPORTANT:

Adhere to conditions of absolute cleanliness when working on the high-pressure fuel system.

Introduced contaminants can cause malfunctions in the system!

Do not allow any dirt particles or foreign bodies to get into the system.
Remove all traces of dirt contamination before removing lines or separate components.
Use only fluff-free cloths.
Seal all fuel system openings with protective caps or plugs.

IMPORTANT: Ignition coils must not be contaminated by fuel.
The resistance of the silicone material is reduced significantly by contact with fuel, which may cause the ignition coil to fail!
Cover ignition coil with suitable means.

Necessary preliminary tasks:

Remove THROTTLE BODY

Recycling:

Fuel escapes when fuel lines are detached.

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

Apply silicone-free multifunction spray (part number 83 23 0 418 567) on to supports (1) of base well bracket (2).

Unplug connector (3) and (4) from base well.

Slide base well (2) in direction of arrow.

Fig 1: Applying Silicone-Free Multifunction Spray On Base Well Bracket Supports

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 00 7 300 in mounting points (1) on base well.

NOTE: Place tips of special tool 00 7 300 between retainers (2) and then center (arrow).

Fig 2: Inserting Special Tools (00 7 300) In Base Well Mounting Points

Courtesy of BMW OF NORTH AMERICA, INC.

Detach base well (1) from bracket (2) with special tool 00 7 300 .

Fig 3: Removing Base Well From Bracket Using Special Tool (00 7 300)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and remove.

Unlock and detach fuel line (2).

Catch and dispose of escaping fuel.

Fig 4: Identifying Connector And Fuel Line

Courtesy of BMW OF NORTH AMERICA, INC.

Seal fuel lines with special tools 13 5 281 and 13 5 282 .

Fig 5: Sealing Fuel Lines Using Special Tools 13 5 281 And 13 5 282

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Release screw (2).

Installation note:

Replace aluminium screw (2).

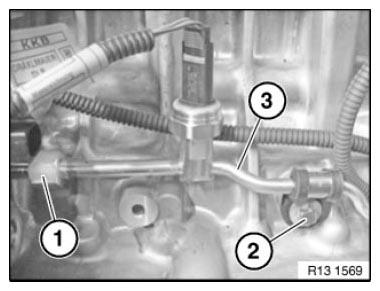

Remove feed line (3).

Fig 6: Identifying Feed Line, Screw And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Seal feed line with matching plug from set of special tools 32 1 270 .

Fig 7: Sealing Feed Line With Matching Plug From Special Tool Kit 32 1 270

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Fig 8: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Undo screws (1) and raise acoustic cover (2) in front area.

Fig 9: Raising Acoustic Cover In Front Area

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Fig 10: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Seal fuel line connections of high pressure pump (1) with matching plugs from set of special tools 32 1 270 .

Fig 11: Sealing Fuel Line Connections With Matching Plugs From Set Of Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts with special tool 11 8 610 .

Detach high pressure pump (1) and remove.

Engine oil can escape when pump is detached; have a cleaning cloth ready.

Fig 12: Locating High Pressure Pump Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installing high pressure pump:

Installation of high pressure pump is described separately from removal.

Replace sealing ring (1).

Clean contact surfaces.

Replacement:

For better installation, turn the journal of the new high pressure pump to the position of the old high pressure pump.

Fig 13: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

When installing, turn high pressure pump (1) if necessary in direction of arrow until bore holes for screws are flush.

Fig 14: Installing High Pressure Pump

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

This helps ensure that no strain is produced when the high pressure line is tightened.

Only hand-tighten screws (1) of high pressure pump (2) with special tool 11 8 610 .

Copper seals that may be fitted on the high pressure line are no longer needed and must be removed.

If reusing pressure line, lightly grease threads of pressure connections. Threads of new pressure lines are already coated.

Fig 15: Identifying High Pressure Pump And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Only hand-tighten nut (1).

Fig 16: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Only hand-tighten nut (1).

Fig 17: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Feed lines with a soldered bracket must be replaced by the new version with elastomer clamp holder. Observe installation position of fuel low-pressure sensor. Lines for solenoid switches are laid behind fuel line.

Install feed line (3).

Only hand-tighten nut (1).

Tighten screw (2). Replace aluminium screw.

Tightening torque 13 53 9AZ .

Fig 18: Identifying Feed Line, Screw And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws with special tool 11 8 610 .

Tightening torque 13 51 1AZ .

Fig 19: Locating High Pressure Pump Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

Tightening torque 13 53 7AZ .

Fig 20: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down nut (1) with special tool 13 5 020 .

Tightening torque 13 53 7AZ .

Fig 21: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down nut (1) with special tool 13 5 020 .

Tightening torque 13 53 6AZ .

Fig 22: Tightening Down Nut Using Special Tool (13 5 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Install and lock connector (1).

Fig 23: Identifying Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Slide base well (2) on to bracket (1) as far as it will go.

Install and lock connector (3) and (4).

Fig 24: Applying Silicone-Free Multifunction Spray On Base Well Bracket Supports

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Check fuel system for leak tightness.

Check function of DME.
