26 11 090 Removing and installing/replacing front centering mount for propeller shaft

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove PROPELLER SHAFT .

Completely fill centering bore hole (1) with viscous grease.

Drive special tool 11 1 310 with a plastic hammer into centering bore hole.

The centering bearing (1) is forced out of the propeller shaft by the pressure on the grease filling.

If necessary, top up grease repeatedly.

NOTE: To drive out the bearing, you can also fill the centering bore hole with water instead of grease.

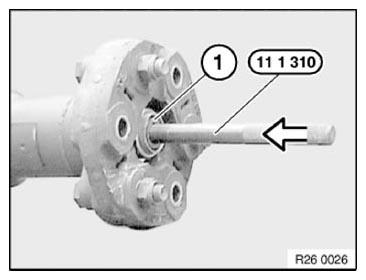

Fig 1: Driving Special Tool (11 1 310) Into Centering Bore Hole With Plastic Hammer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Remove grease/water from mount bore.

Drive in centering mount (1) with special tools 11 2 030 and 00 5 500 into propeller shaft (observe protrusion).

Grease centering mount (refer to approved GREASE ).

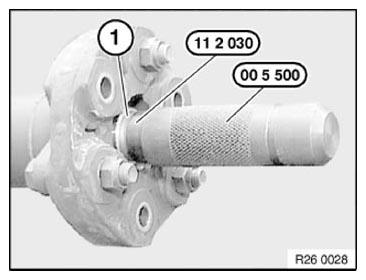

Fig 2: Driving Centering Mount Into Propeller Shaft Using Special Tools (11 2 030 And 00 5 500)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Observe protrusion A = 4⁺² mm of centering (1).

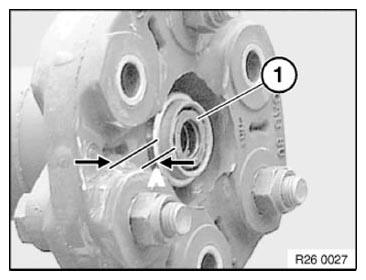

Fig 3: Checking Centering Protrusion Dimension

Courtesy of BMW OF NORTH AMERICA, INC.
