26 11 020 Replacing center mount gaiter

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PROPELLER SHAFT .

NOTE: The propeller shaft is balanced. The front and rear propeller shafts must be reassembled in the same position.

Detach gaiter (1) from groove (2).

Mark front propeller shaft (3) and rear propeller shaft (4) in one plane.

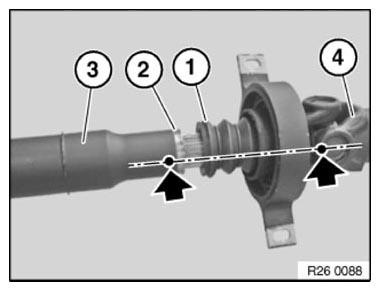

Fig 1: Detaching Gaiter From Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Pull propeller shaft apart.

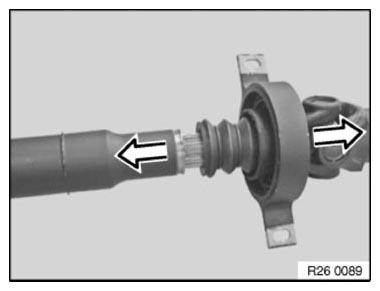

Fig 2: Pulling Out Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, insert new clamping ring (1) into front propeller shaft (2).

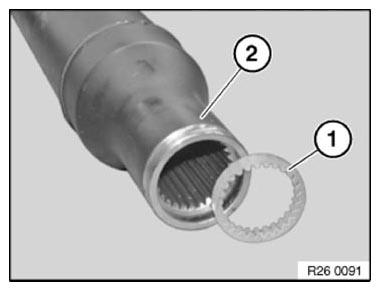

Fig 3: Identifying Clamping Ring And Front Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Release gaiter (1) with screwdriver from groove (2) and pull off over longitudinal splines.

Installation note:

Apply an even coating of grease to longitudinal splines on shaft (refer to approved GREASE ).

Observe markings and force front propeller shaft onto longitudinal splines (markings must be flush).

Push gaiter (1) during installation into groove (2) and make sure it is firmly fitted.

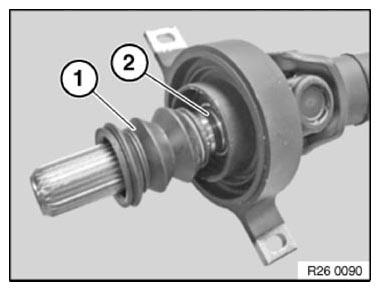

Fig 4: Identifying Gaiter And Groove
