23 ... Universal BMW transmission take-up

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 030
23 4 050

NOTE:

The universal transmission bracket is introduced for the E60 AWD
Suitable for manual and automatic transmissions

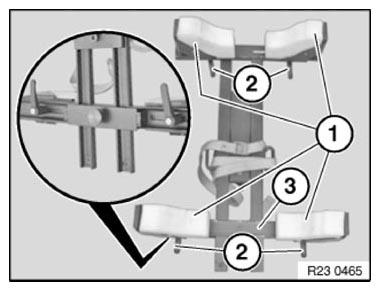

IMPORTANT: Front and rear supports (1) can be laterally adjusted by means of screws (2).

Carrier (3) of rear supports (1) can be longitudinally adjusted by means of screw.

Supports must be adapted in length and width to the transmission.

Fig 1: Identifying Rear Supports, Carrier And Screws

Supporting transmission:

Support transmission with special tools 23 4 050 , 00 2 030 .

IMPORTANT: Transmission must be secured with tensioning strap (1).

Fig 2: Supporting Transmission With Special Tools (23 4 050) And (00 2 030)
