52 14... Performing function check with adapter cable (for seat repairs)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 4 360

NOTE: The function check on a repaired driver's or front passenger seat can be performed outside the vehicle by using adapter cable 61 4 360.

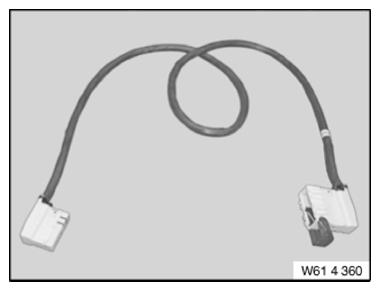

Fig 1: Identifying Adapter Cable (61 4 360)

Courtesy of BMW OF NORTH AMERICA, INC.

Use:

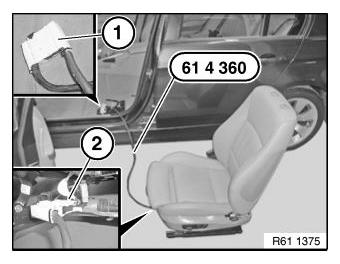

Adapter cable 61 4 360 is connected to vehicle wiring harness (1) and removed seat (2).

Fig 2: Connecting Adapter Cable (61 4 360) To Vehicle Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.
