52 13 021 Removing and installing/replacing flexmat on left or right front seat

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove padding for front seat. See SEAT COVER (NORMAL SEAT) or SEAT COVER (SPORT SEAT) .

Remove plug housing (1) from flexmat.

Cut all cable ties and disengage wiring harnesses from flexmat.

Installation:

Make sure wiring harnesses are laid correctly.

Observe bending radius and do not lay wiring harnesses tensioned.

Fig 1: Locating Flexmat Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

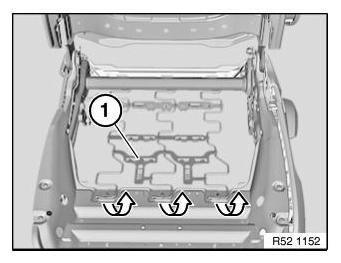

Disengage flexmat (1) at front.

Fig 2: Removing Flexmat

Courtesy of BMW OF NORTH AMERICA, INC.

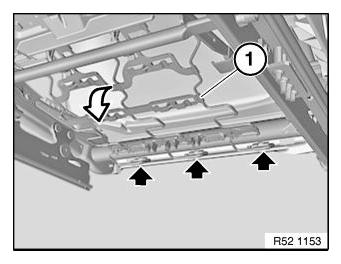

Swing flexmat (1) down and disengage from seat frame.

Fig 3: Swinging Flexmat Down

Courtesy of BMW OF NORTH AMERICA, INC.
