32 00 620 Adjusting rear axle

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 3 030

NOTE: A camber change always means a toe change as well. The camber must therefore be adjusted first.

Adjusting camber:

Replace nut (2) and tighten to 5 Nm.

Turn eccentric bolt (1) to adjust camber to setpoint value.

Tighten nut (2).

Tightening torque 33 32 3AZ .

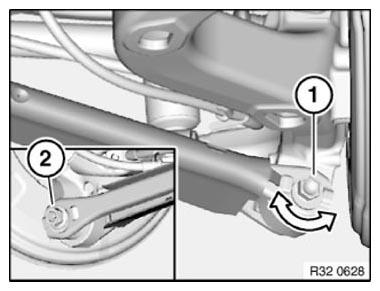

Fig 1: Turning Eccentric Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting toe:

Slacken bolts of bearing block by approx. 1 to 1.5 turns.

Attach special tool 32 3 030 to bolt head and pin (1).

Turn special tool 32 3 030 to adjust toe to specified value.

Tighten down screws.

Tightening torque 33 32 2AZ .

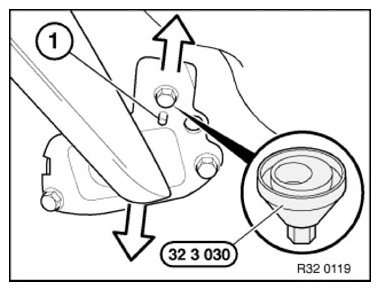

Fig 2: Attaching Special Tool (32 3 030) To Bolt Head And Pin
