32 11 100 Replacing gaiter for steering box on left or right: Notes

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The hydraulic steering gear must be replaced if the polished surface of the rack is damaged (e.g. by corrosion)!

Necessary preliminary tasks:

Remove front UNDERBODY PROTECTION

Release band clamp (1).

Mark screw-in depth of track rod (2) or count thread turns.

Release screw (3).

Tightening torque 32 21 3AZ .

Twist track rod (2) out of track rod end (4).

Installation note:

Replace microencapsulated screw.

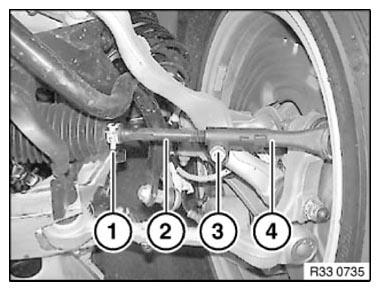

Fig 1: Identifying Band Clamp And Track Rod End

Courtesy of BMW OF NORTH AMERICA, INC.

Release EAR CLIP (1).

Pull off gaiter (2) from the track rod (3).

Installation note:

Clean rack and check surface for damage (e.g. by corrosion).

Grease rack (lubricating grease FB-1: part number part number 2 208 093).

Clean track rod and apply grease to taper. This ensures that the gaiter is not rotated when the track rod is rotated.

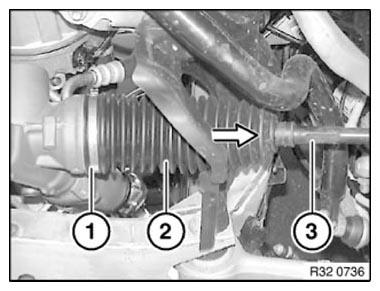

Fig 2: Pulling Gaiter From Track Rod

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform wheel alignment check. See ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
