31 21 180 Removing and installing/replacing bearing for front wheel

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BRAKE DISC

NOTE:

Check brake pads and replace if necessary!

Release screws (1).

Tightening torque 31 21 1AZ .

Press wheel bearing (2) off swivel bearing with a suitable tool.

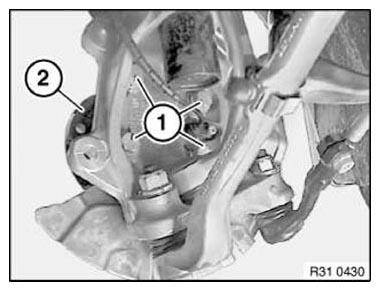

Fig 1: Identifying Wheel Bearing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace screws.

When reusing, recut all the threads in the wheel bearing.

Keep contact surface (1) of swivel bearing and wheel bearing clean and free from oil and grease.

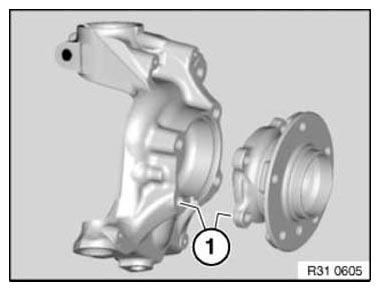

Fig 2: Identifying Swivel Bearing And Wheel Bearing Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.
