31 12 050 Removing and installing/replacing left or right trailing link

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT UNDERBODY PROTECTION

Release nut (1), if necessary, counter-hold at inner Torx (T40).

Tightening torque 31 12 2AZ .

Installation note:

Keep tension strut to swivel bearing connection clean and free from oil and grease.

Replace self-locking nut.

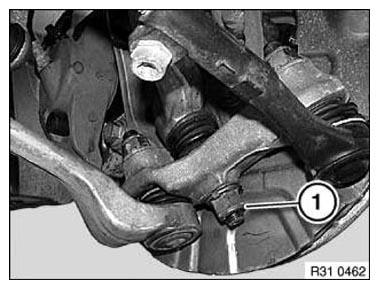

Fig 1: Identifying Tension Strut Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) and remove tension strut.

Tightening torque 31 12 1AZ .

Raise lock nut (2) in area of bore and detach from front axle support.

Installation note:

Replace screw and lock nut.

Tighten screw connection in NORMAL POSITION .

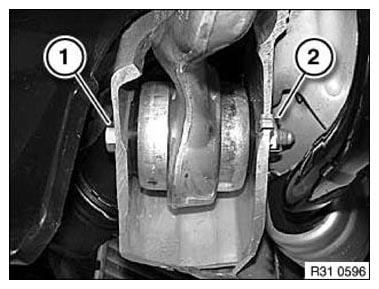

Fig 2: Identifying Tension Strut Bolt And Front Axle Support Lock Nut

Courtesy of BMW OF NORTH AMERICA, INC.
