31 33 095 Measure vehicle ride height, front axle

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 0 001

Determining actual ride height (A):

To do so, attach tape measure to rim flange (2) and measure to wheel arch lower edge or engine compartment lid lower edge (1).

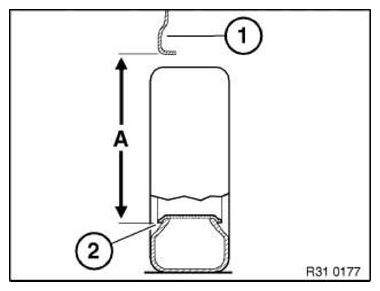

Fig 1: Checking Actual Ride Height From Lower Edge Of Wheel Arch To Rim Flange

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If engine compartment lid is removed or damaged, use special tool 32 0 001 .

Fitting special tool 32 0 001:

Remove rubber plug next to spring strut dome.

Fasten special tool 32 0 001 in bore hole and turn in opposite direction to direction of travel (see arrow) up to stop (1).

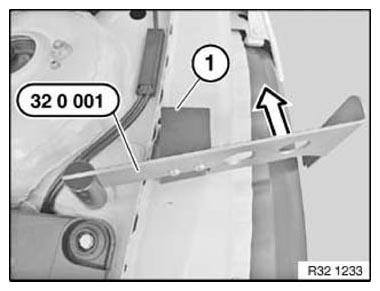

Fig 2: Fitting Special Tool (32 0 001)

Courtesy of BMW OF NORTH AMERICA, INC.

Determining actual ride height (A):

Attach tape measure to rim flange at bottom middle and measure to lower edge of special tool 32 0 001 .

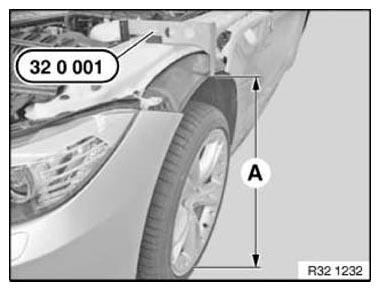

Fig 3: Checking Actual Ride Height

Courtesy of BMW OF NORTH AMERICA, INC.
