31 33 001 (Removing and installing) replacing front left or right spring strut support bearing

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Installation note:

All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
Retaining elements on chassis and suspension and steering parts must be replaced.

NOTE: Procedure is described in "REPLACING FRONT LEFT OR RIGHT SPRING STRUT ".

If necessary, twist/drive out centering pin (1).

NOTE: If a support bearing (2) was fitted without centering pin (1), the centering pin (1) of the new support bearing (2) must be driven or twisted out.

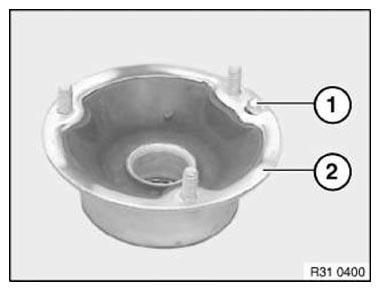

Fig 1: Identifying Support Bearing And Centering Pin

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

If a support bearing is installed without centering pin, a wheel alignment is required. See ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
