31 00... Notes on repairing threads

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.

NOTE: Damaged threads in engine support may be repaired with Helicoil thread inserts. Comply with the procedure described in the example.

Fig 1: Identifying Damaged Helicoil Thread

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure:

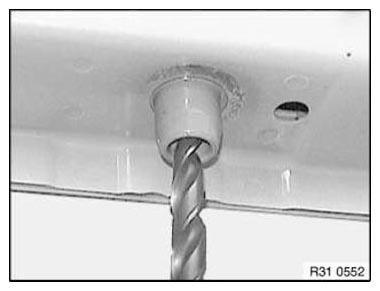

Create a clean core hole; if necessary, drill out screw remnants

Fig 2: Cleaning Core Hole
Courtesy of BMW OF NORTH AMERICA, INC.

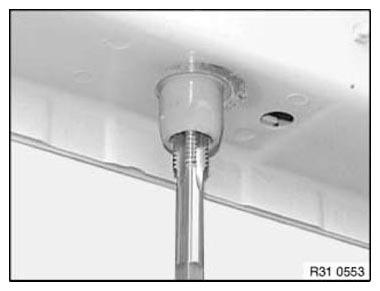

Create locating thread for Helicoil thread insert

Fig 3: Creating Thread For Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.

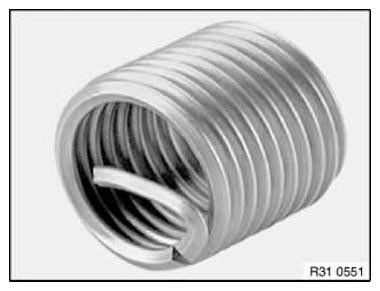

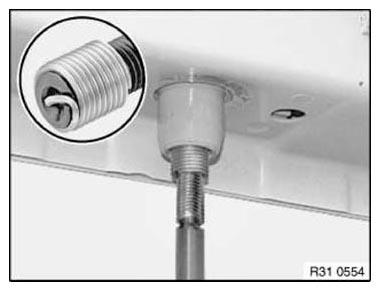

Pick out Helicoil thread insert in accordance with the TABLE and screw into the locating thread until flush with the original thread

Fig 4: Identifying Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.

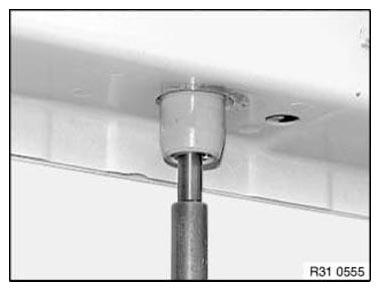

Break drive pin and remove

Fig 5: Breaking Drive Pin

Courtesy of BMW OF NORTH AMERICA, INC.
